| MODEL | ZONE 66 |
| Input Gain ( Mic / Line ) | +12 to +60dB |
| Output Level | +6dB |
| Frequency Response | 20Hz – 20KHz |
| Signal to Noise RatioMic / Line | Better than -75dB / Better than -85dB |
| THD (Mic / Line) | < 1% / <0.05% |
| Tone Control – Bass / Treble | ± 12dB / 100Hz / ±12dB / 10kHz |

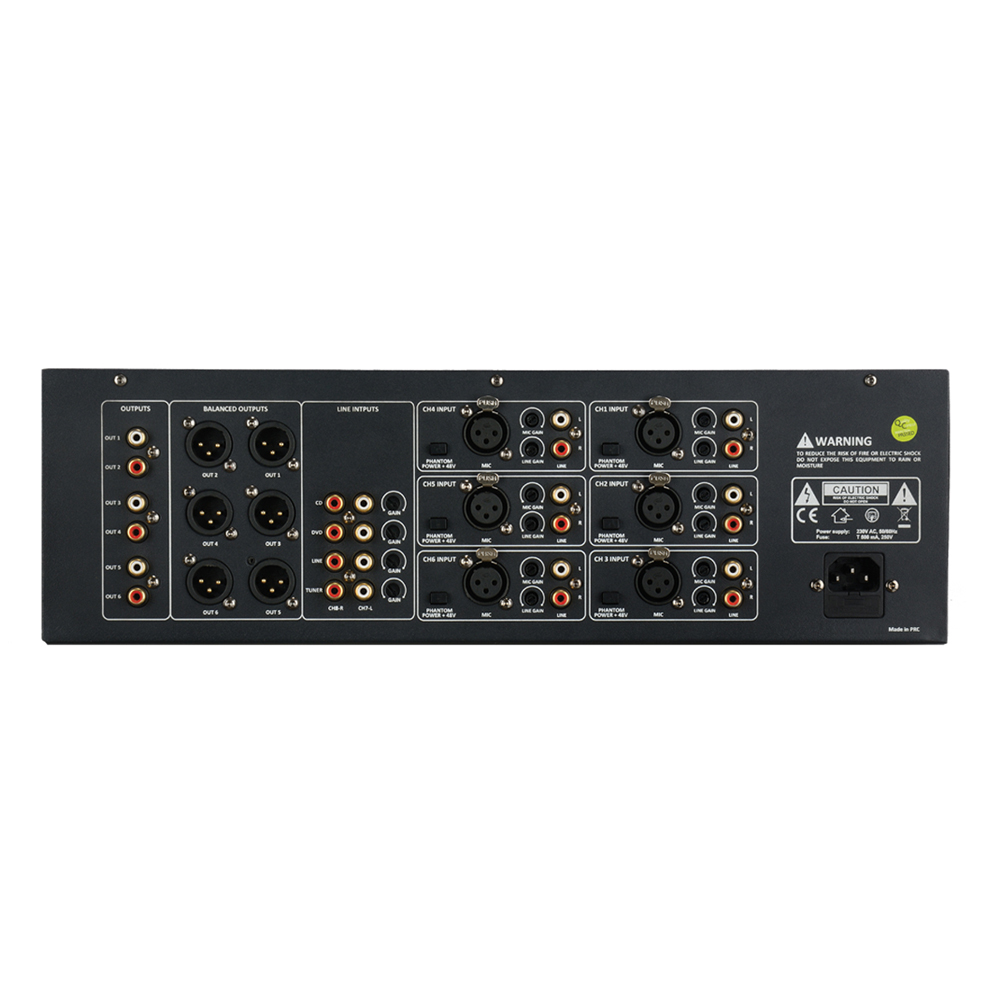

| Input Connectors | 6 x Line (Stereo RCA), 6 x Mix (XLR) & 4 x Aux (Stereo RCA) |
| Output Connectors | 6 x (XLR balanced and RCA Unbalanced) |
| Dimensions (W x D x H)mm | 483 x 172.5 x 133 (3 U) |
| Net Weight (Kgs.) | 4.8 |
