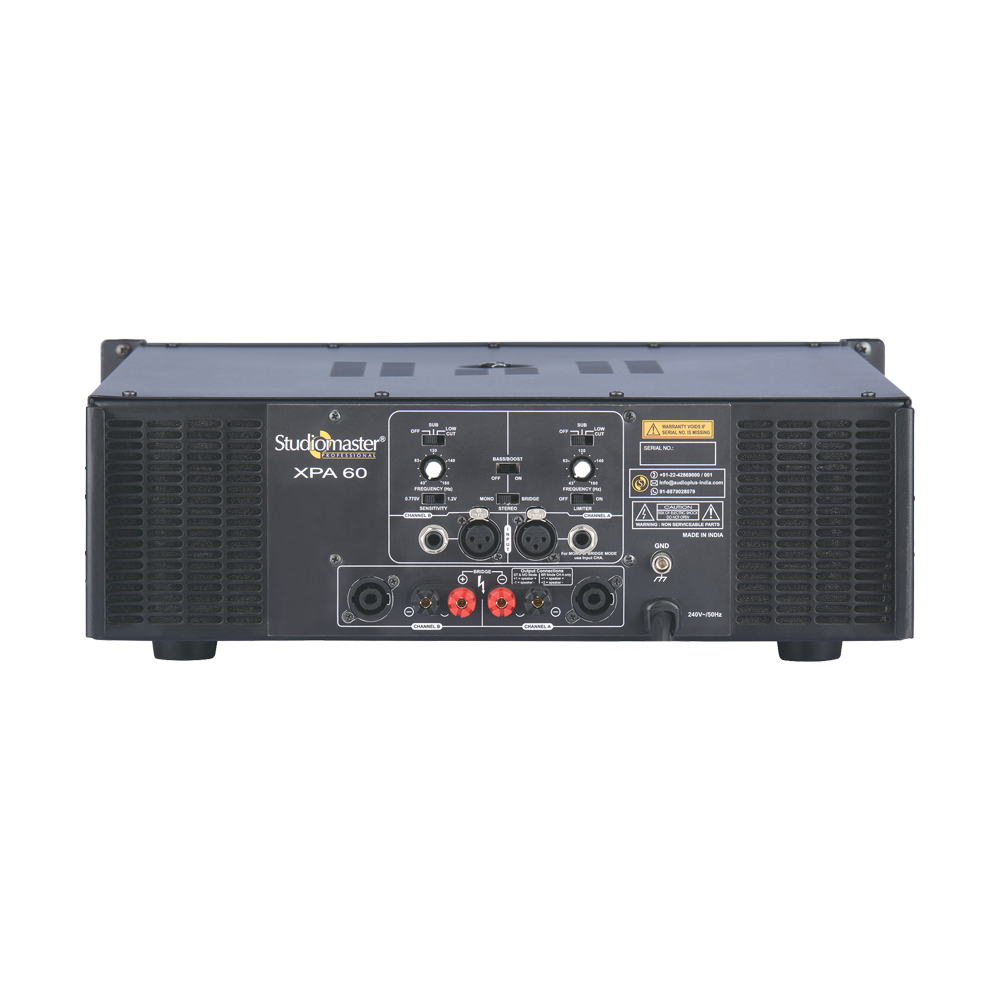

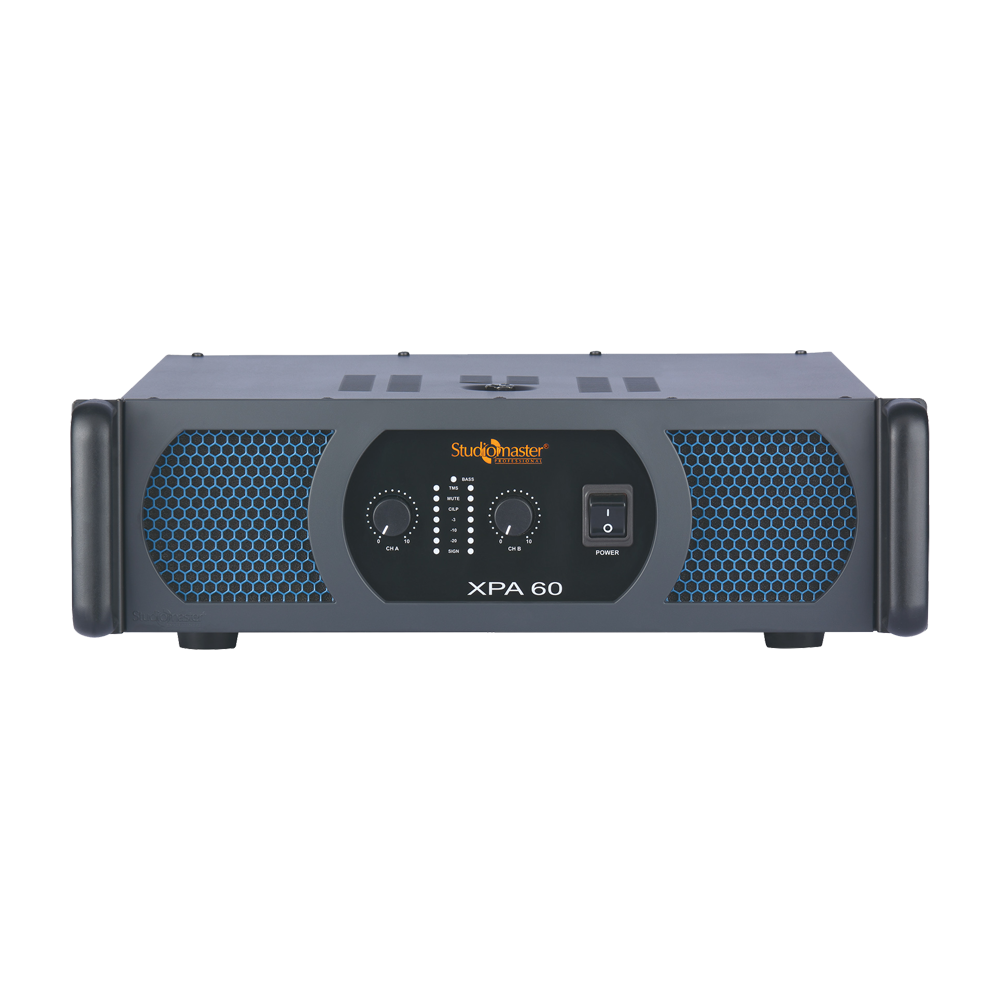

XPA 60

Categories Amplifiers, Studiomaster

SPECIFICATIONS

Model	XPA 60
Power Output
2 ? (True RMS), 20Hz-20kHz, 1% THD	2 x 3000 W
2 ? (EIA), 1kHz, 1%THD	2 x 5600 W
4 ? (True RMS), 20Hz-20kHz, 1% THD	2 x 2000 W
4 ? (EIA), 1kHz, 1%THD	2 x 3100 W
8 ? (True RMS), 20Hz-20kHz, 1% THD	2 x 1300 W
8 ? (EIA), 1kHz, 1%THD	2 x 1700 W
Bridged Mode
4 ? (True RMS), 20Hz-20kHz, 1% THD	6000 W
8 ? (True RMS), 20Hz-20kHz, 1% THD	4000 W
Damping Factor (8 ?)	> 400 : 1 (@ 8 ?)
Frequency Range	20Hz-20kHz (± 0.5dB)
Protection	Temperature, DC, RFI, short circuit, soft-start, overload
Input Connector (Per Channel)	XLR, jack stereo 6.3mm
Output Connector (Per Channel)	Speakon and Binding Post
Dimensions (W x D x H) mm	484 x 575 x 133 (3U)
Net Weight (Kg)	37
