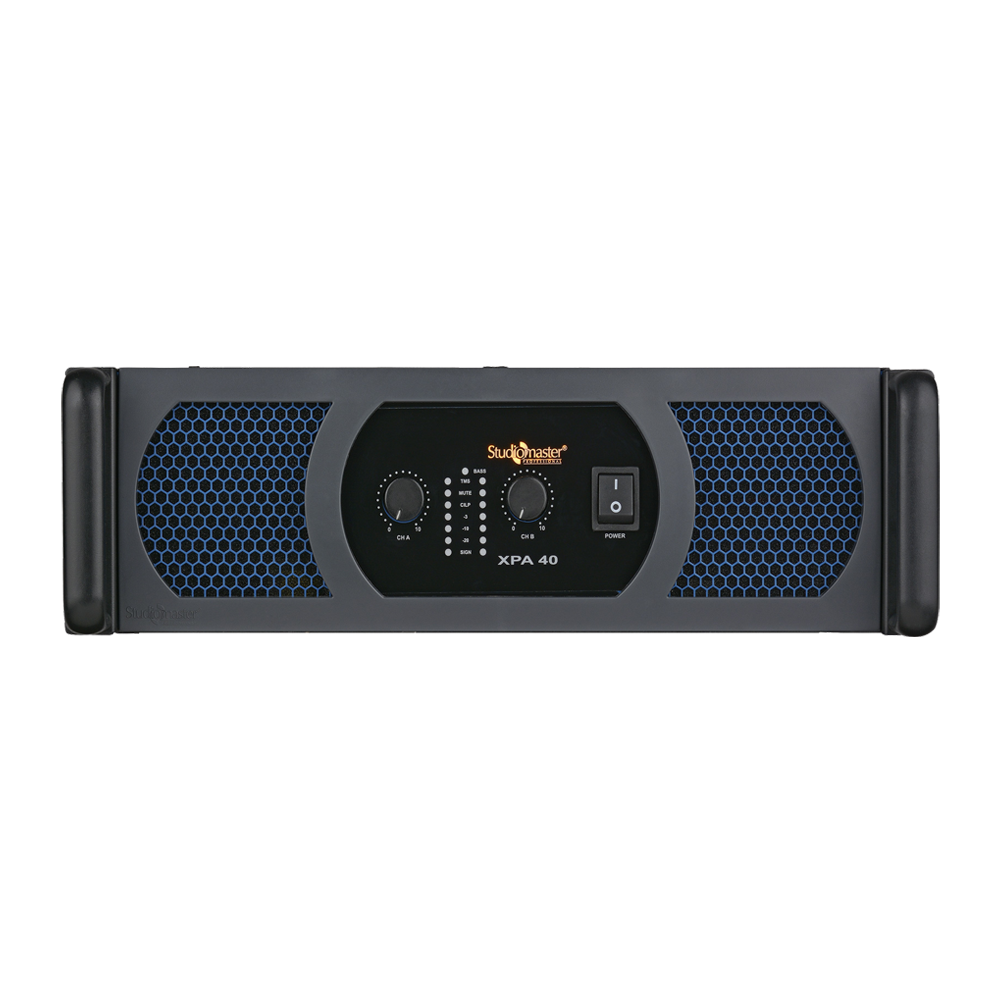

XPA 40

Categories Amplifiers, Studiomaster

SPECIFICATIONS

Model	XPA 40
Power Output
2 Ω (True RMS), 20Hz-20kHz, 1% THD	2 x 2000 W
2 Ω (EIA), 1kHz, 1%THD	2 x 3000 W
4 Ω (True RMS), 20Hz-20kHz, 1% THD	2 x 1400 W
4 Ω (EIA), 1kHz, 1%THD	2 x 2100 W
8 Ω (True RMS), 20Hz-20kHz, 1% THD	2 x 850 W
8 Ω (EIA), 1kHz, 1%THD	2 x 1200 W
Bridged Mode
4 Ω (True RMS), 20Hz-20kHz, 1% THD	4000 W
8 Ω (True RMS), 20Hz-20kHz, 1% THD	2800 W
Damping Factor (8 Ω)	>400:1
Frequency Range	20Hz-20kHz (± 0.5dB)
Protection	Temperature, DC, RFI, short circuit, soft-start, overload

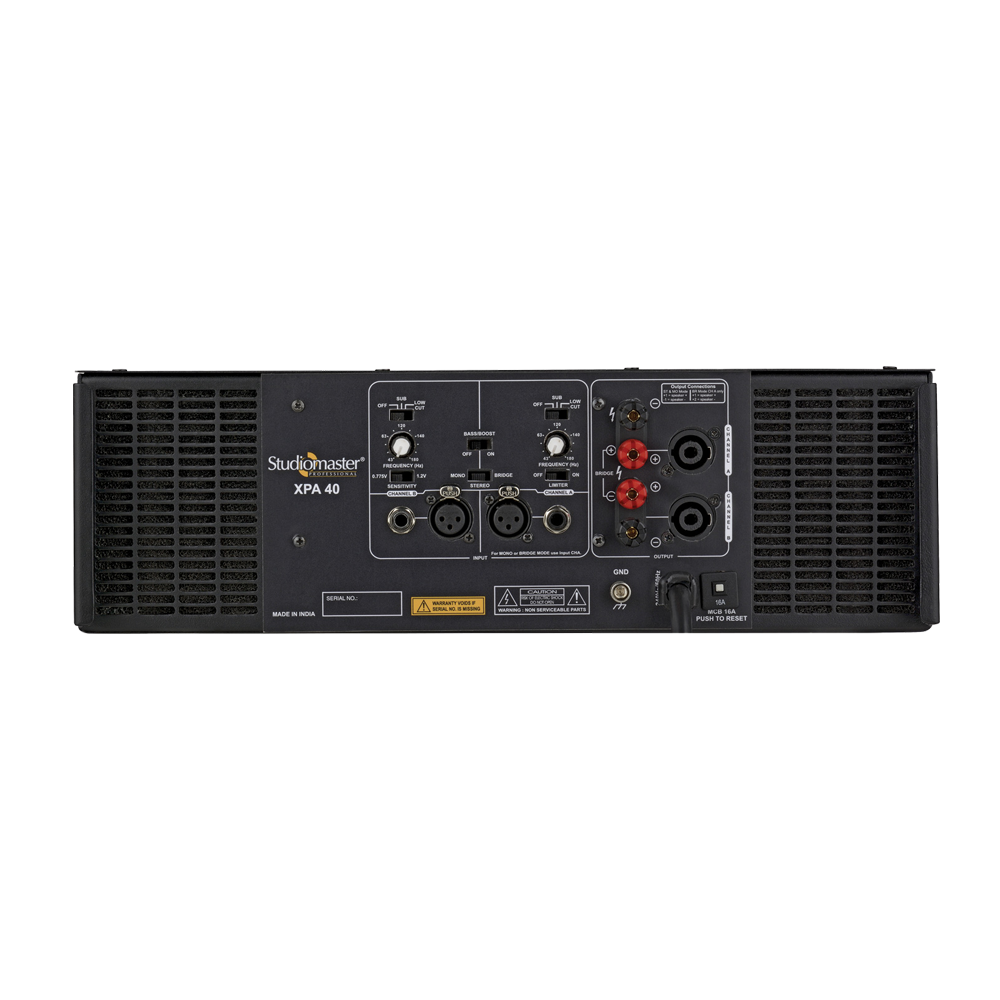

Input Connector (Per Channel)	XLR, jack stereo 6.3mm
Output Connector (Per Channel)	Speakon and Binding Post
Dimensions (W x D x H) mm	484 x 575 x 133 (3U)
Net Weight (Kg)	33
