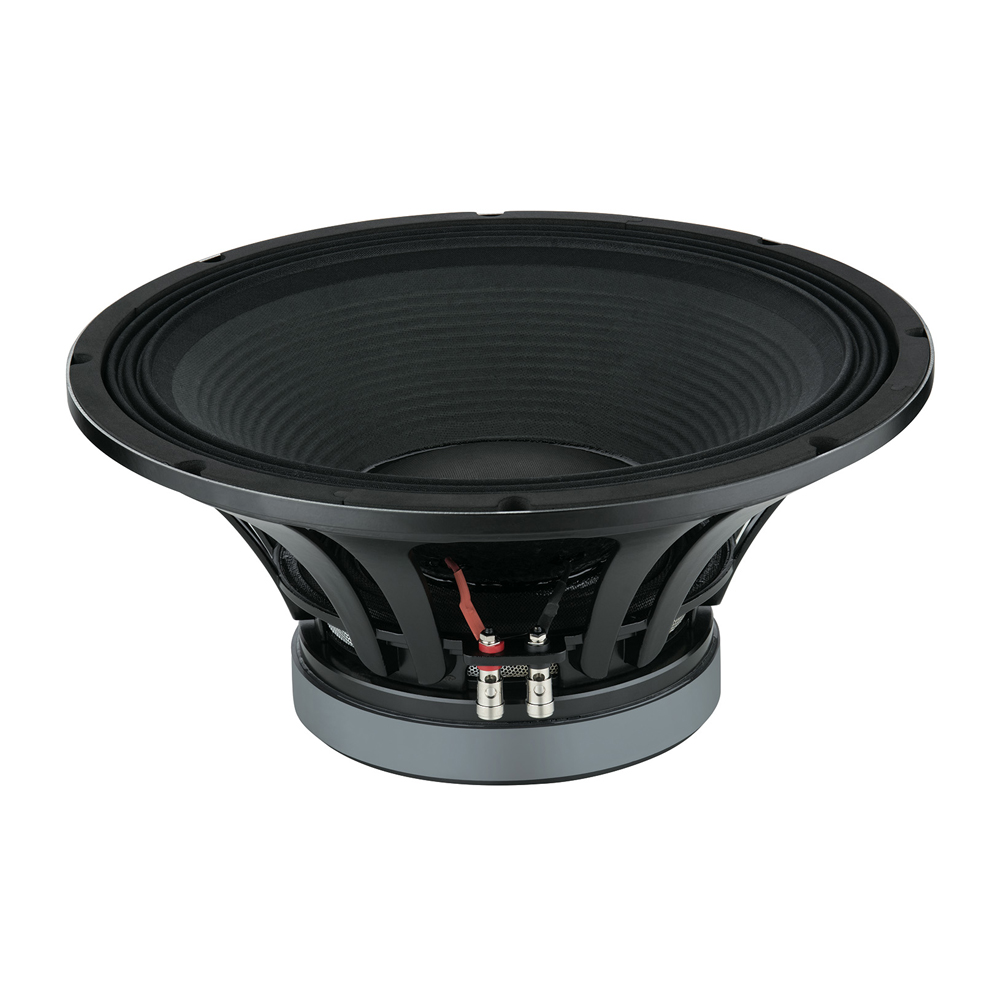

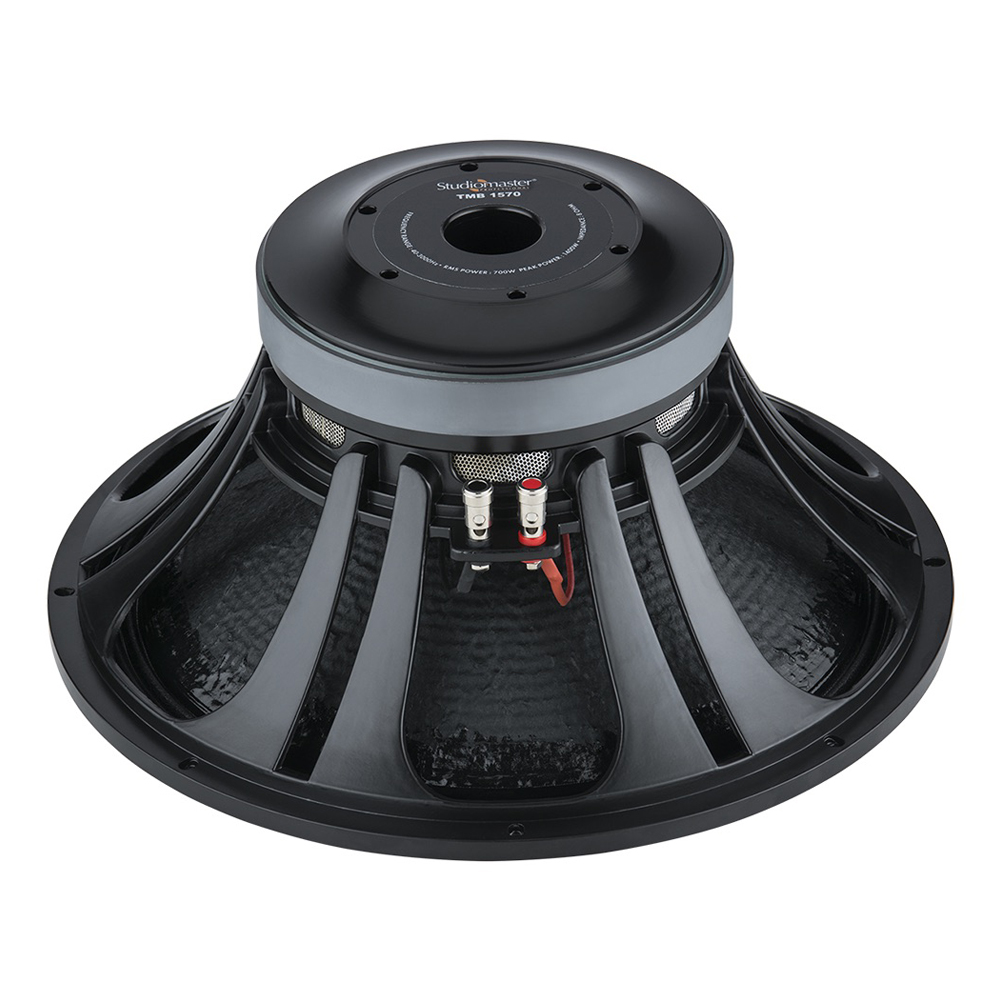

| Model | TMB 1570 |
| Type | Mid-Bass |
| Power Output – (RMS / Peak) Watts | 700/1400 |
| Frequency Range (Hz) | 40-3000 |
| Impedance (?) | 8 |
| Sensitivity (1w @1m) dB | 97.5 |
| Nominal Diameter (mm/inch) | 385/15 |
| Voice Coil Diameter (mm/inch) | 100/4 |
| Voice Coil Material | CCAW |
| Kind of Layer | Inside/Outside |
| Basket | Die-cast |
| Net Weight (Kg) | 10 |
