| Model |

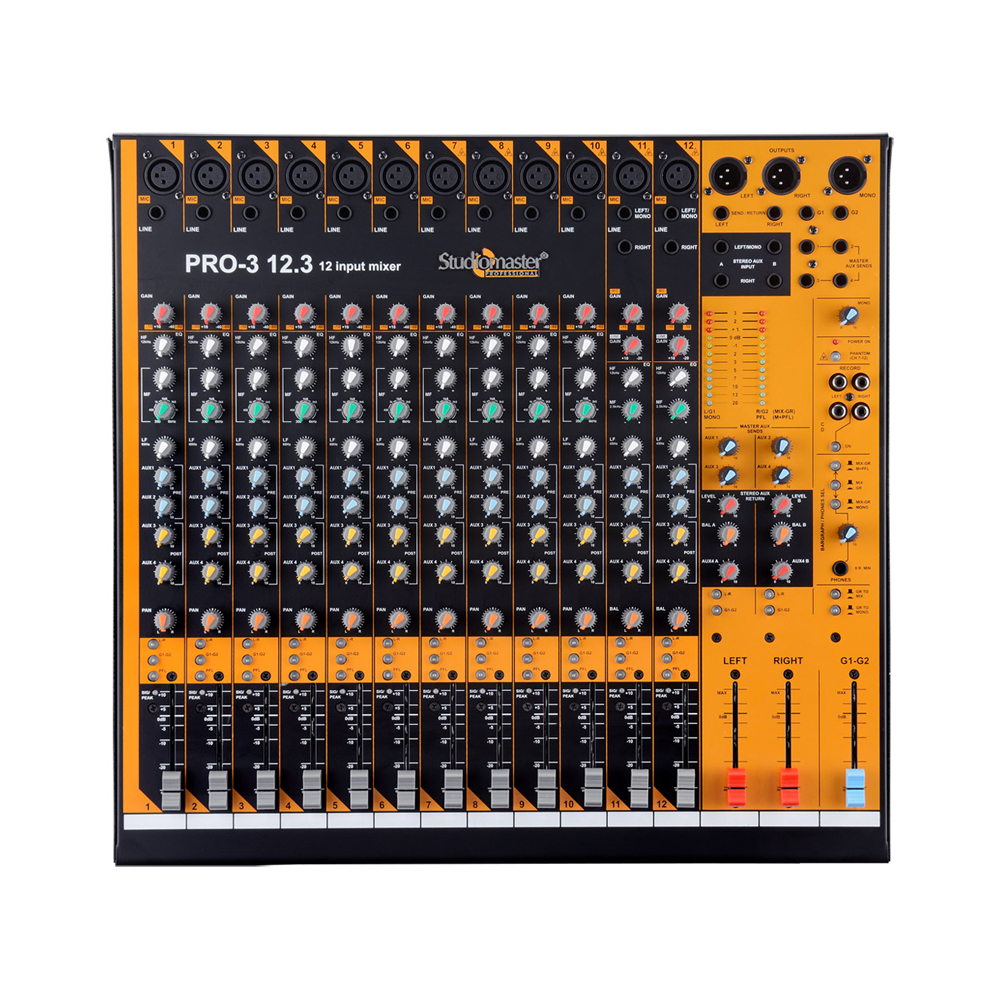

Pro 12.3 |
| Nominal Gain (Mic/Line/Stereo Line) |
60dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) |
80dB/60dB/40dB |
| Input Levels Sensitivity |
|
| Mic (Gain Min/Gain Max) |
-10dBu / -60dBu |
| Line (Gain Min /Gain Max) |
-10dBu / -40dBu |
| Stereo (Gain Min /Gain Max) |
+10dBu / -20dBu |
| Input impedence |
|
| Mic Input |
Typically 1.7K Ω balanced |
| Line input |
17K Ω (Balanced) /8K Ω (Unbalanced) |
| Main Output level (Nominal /Max) |
+0dBu (0.775V RMS) / +22dBu (10V RMS) |
| Main Output Impedance |
<30 Ω |
| Frequency Response |
20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion |
<0.1 |
| Signal to Noise Ratio |
-78 dB |
| Clip indication |
5 dB prior to true clip |
| Equalisation |
|
| Mono Mic [Treble/Mid(with sweep)/Bass] |
±16dB @ 12KHz/350Hz-6KHz/60 Hz |
| Stereo Mic/Line (Treble/Mid/Bass) |
±16dB @ 12KHz/2.5 Hz/45 Hz |
| Phantom Supply |
+48V (Ch 7-12) |
| Power supply |
150V~250V AC/50Hz |
| Dimensions (W x D x H in mm) |
480 x 460 x 128 |
| Net Weight (Kgs.) |
9.2 |
