| Model |

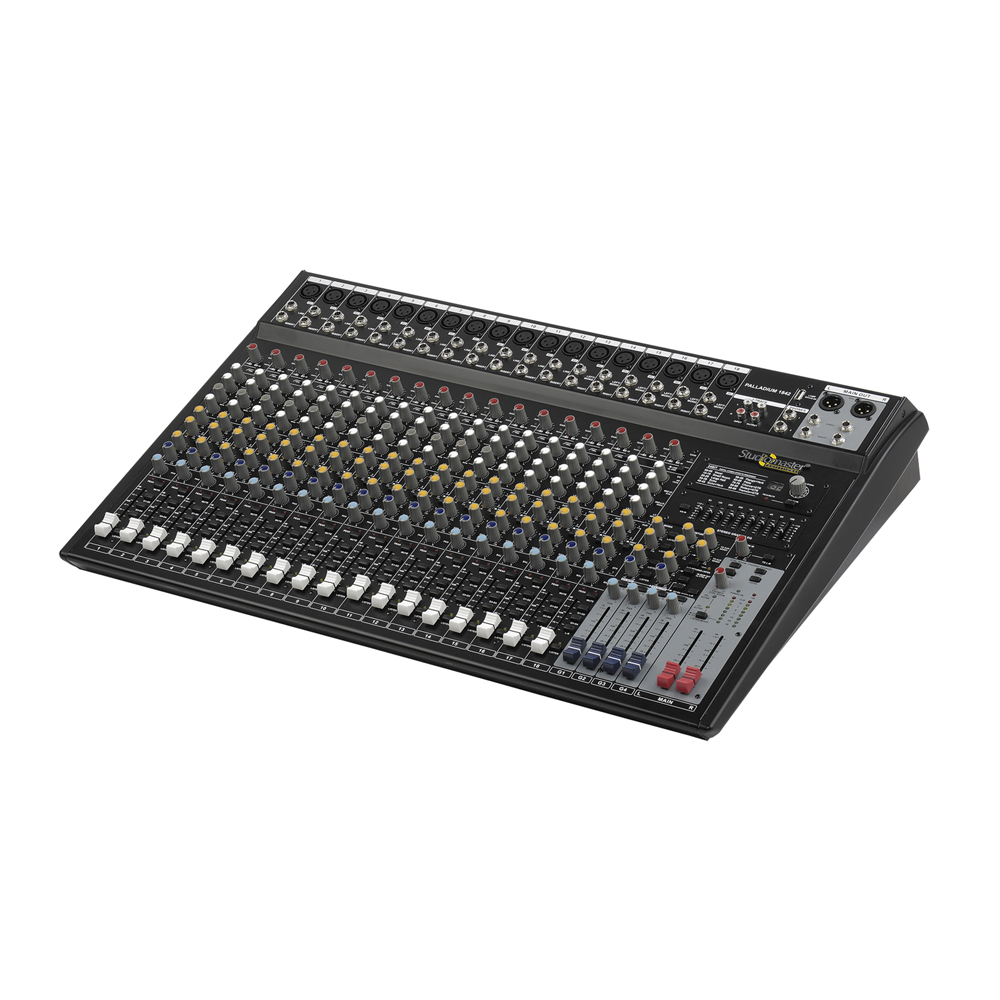

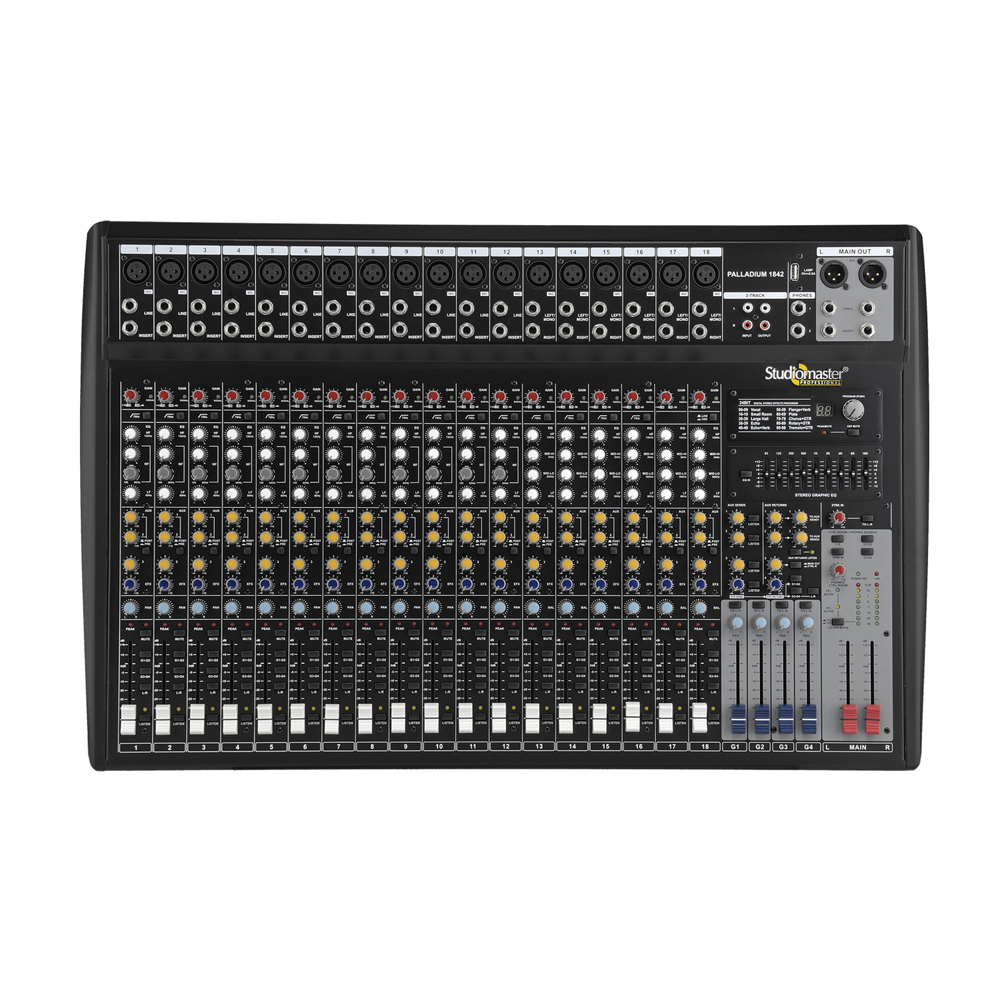

Palladium 1842 |
| Max Gain (Mic/Line/Stereo Mic/Stereo Line) |
80dB, 60dB, 70dB, 50dB |
| Input Levels Sensitivity |
|
| Mic (Gain Min/Gain Max) |
-10dB/-60dBu |
| Line (Gain Min/Gain Max) |
+10dB/-40dB |
| Stereo Line (Gain Min/Gain Max) |
+10dBu/-30dBu |
| Stereo Mic (Gain Min/Gain Max) |
-10dB/-50dB |
| Input impedence |
|
| Mic Input |
> 5KΩ |
| Line input |
> 20KΩ |
| Aux Return Input |
> 20KΩ |
| Tape Record Inputs |
> 20KΩ |
| Frequency Response |
20Hz to 20KHz (+0/-2dB) |
| Total Harmonic Distortion |
<0.006% |
| Equalisation |
|
| Mono MIC (Treble/Mid with Sweep/Bass) |
±15dB @12KHz / 100Hz to 8KHz / 80Hz |
| Stereo Line (Treble/Mid-Hi/Mid-Low/Bass) |
±15dB @12KHz / 3KHz / 500Hz /80Hz |
| Phantom supply |
+48V |
| Power Supply |
150V-240V~50Hz, 60W max |
| Dimensions (W x D x H in mm) |
695 x 455 x 115mm |
| Net Weight (Kgs.) |
10 |
