| Model |

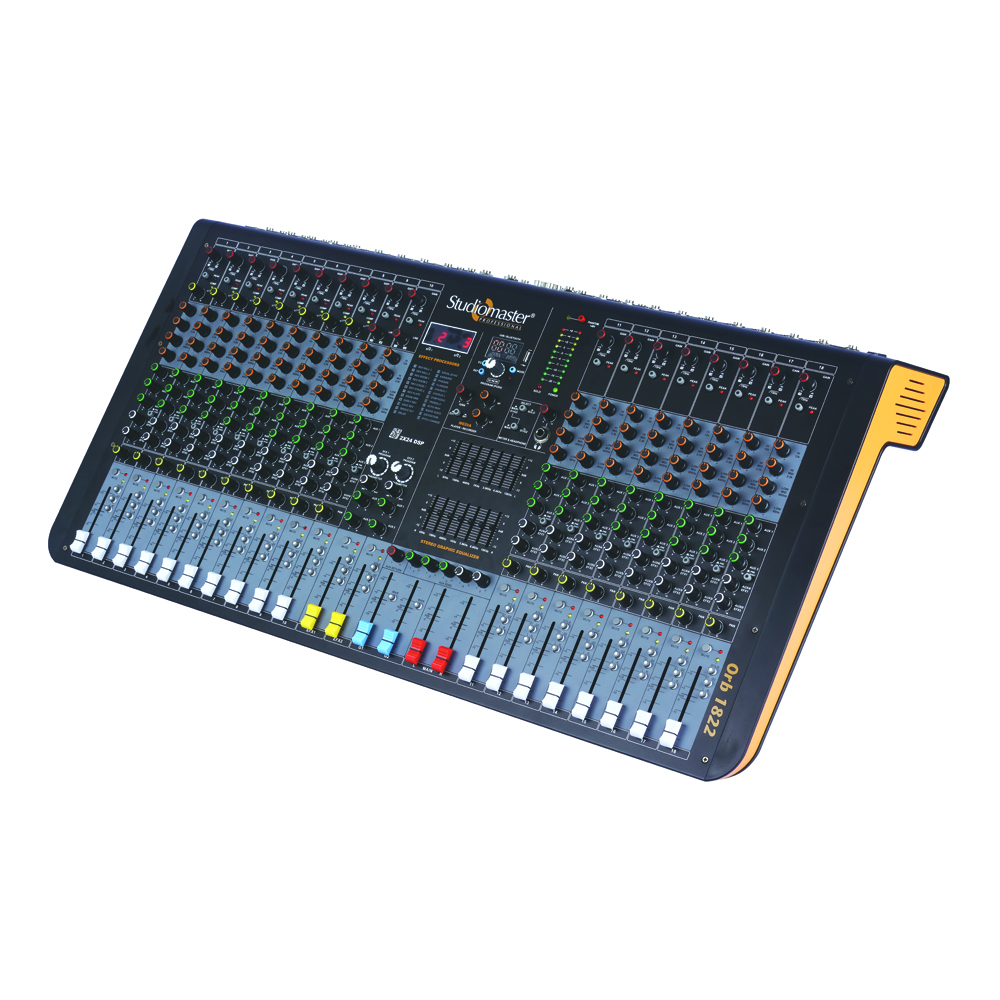

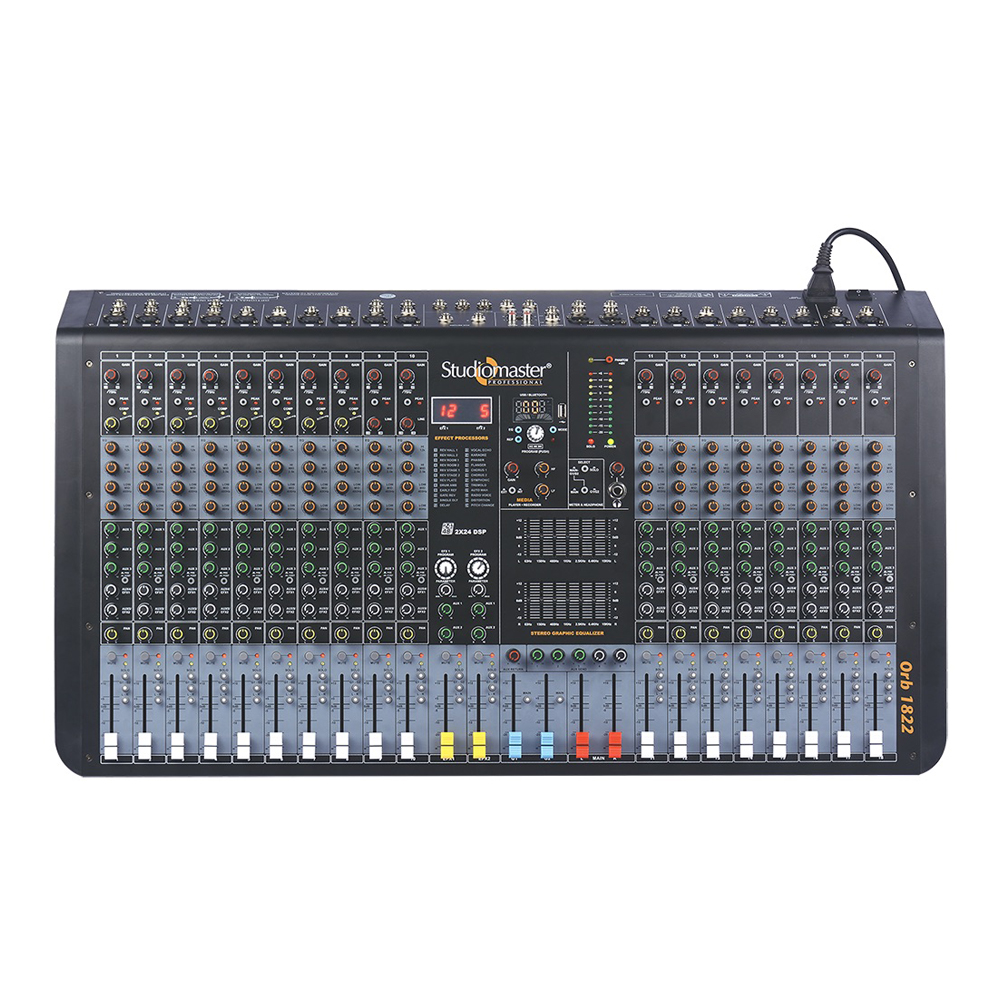

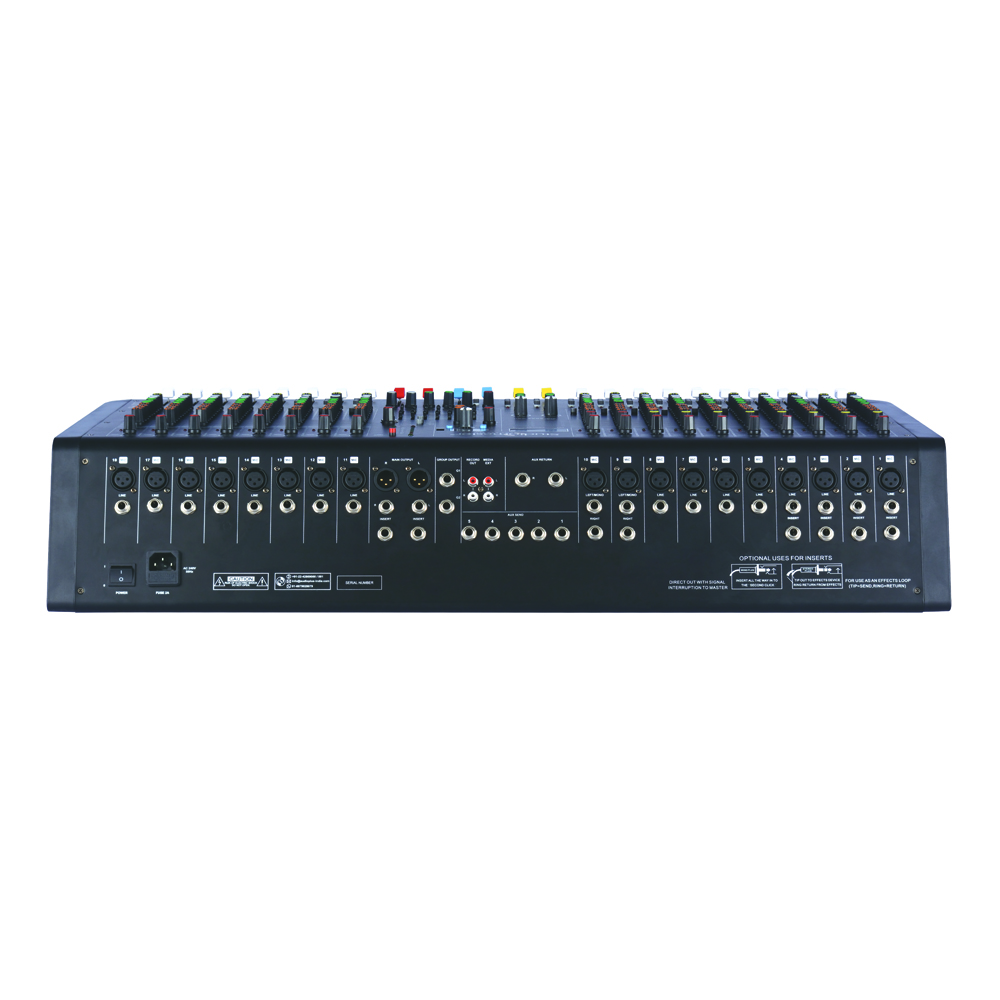

Orb 1822 |
| Nominal Gain (Mic / Line / Stereo Line) |
60dB / 40dB / 20dB |
| Max Gain (Mic / Line / Stereo Line) |
80dB / 60dB / 40dB |
| Input Output Levels |
| Mic (Gain Min / Gain Max) |
-10dBu / -60dBu |
| Line (Gain Min / Gain Max) |
+10dBu / -40dBu |
| Stereo Line (Gain Min / Gain Max) |
+10dBu / -20dBu/p> |
| Aux Return (Nominal / Max) |
-10dBu / +30dBu |
| Clip Indication |
5dB prior to true clip |
| Main Output, Group Output, Aux Send, Record Out (Nominal / Max) |
0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Insert In/Out (Nominal / Max) |
0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Mic Input Impedance |
5 K? Balanced |
| Line Input Impedance |
20K? Balanced / 10K? Unbalanced |
| Frequency Response |
20Hz-20kHz (+0 / -1dB) |
| Total Harmonic Distortion |
< 0.02% |
| Cross-talk |
-80dB |
| MIC EIN (Equivalent Input Noise) |
-128dB |
| Main Out/Group Out |
-80dB |
| Aux Send |
-70dB |
| Record Out |
-77dB |
| Equalization |
| Mono MIC (Hi / Hi-Mid / Low-Mid / Low) |
±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| Stereo Line (Hi / Hi-Mid / Low-Mid / Low) |
±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| 7-Band Stereo Equalizer |
±12dB @ 15kHz / 6.4kHz / 2.5kHz / 1kHz / 400Hz / 150Hz / 63Hz |
| Low Cut |
-3dB @ 75Hz |
| Miscellaneous |
| Effects |
24-bit/48kHz Sampling Rate 2 x 24 DSP Presets |
| Phantom Supply |
+48V |
| Power Supply |
150V-240V / 50Hz |
| Fuse |
2A 250V AC |
| Power Consumption |
22W Max |
| Dimensions (W x D x H) mm |
820 x 490 x 160 |
| Net Weight (Kg) |
13 |
