| Model |

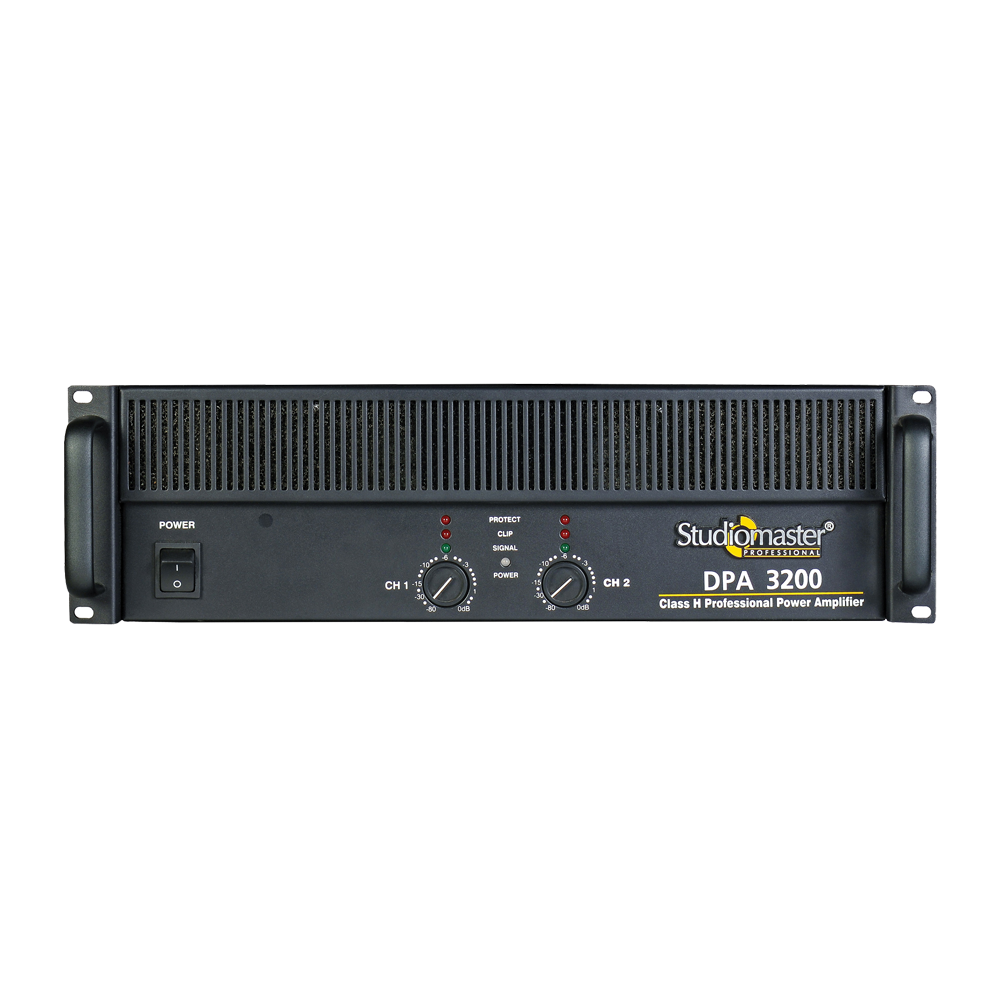

DPA 3200 |
| Power Output |
|
| 2 Ω (True RMS),20Hz-20kHz,1% THD |
2 x 1600 W |
| 2 Ω (EIA), 1kHz , 1%THD |
2 x 3900 W |
| 4 Ω (True RMS),20Hz-20kHz,1% THD |
2 x 1200 W |
| 4 Ω (EIA), 1kHz , 1%THD |
2 x 2450 W |
| 8 Ω (True RMS),20Hz-20kHz,1% THD |
2 x 800 W |
| 8 Ω (EIA), 1kHz , 1%THD |
2 x 1225 W |
| Bridged Mode |
|
| 4 Ω (True RMS),20Hz-20kHz,1% THD |
3200 W |
| 4 Ω (EIA), 1kHz , 1%THD |
7800 W |
| 8 Ω (T rue RMS),20Hz-20kHz,1% THD |
2400 W |
| 8 Ω (EIA), 1kHz , 1%THD |
4550 W |
| Damping factor (8 Ω) |
> 300 :1 |
| Frequency Response |
20Hz – 20kHz (±0.5dB) |
| Protection Devices |
DC, Short Circuit, Over heat, Soft-Start, Clip Limit, Over load |
| Input Connector (Per CH.) |
XLR |
| Output Connector (Per CH.) |
Speakon & Binding post |
| Dimensions (WxDxH)mm |
483 x 455 x 130 (3U) |
| Net Weight (Kgs.) |
40.3 |
