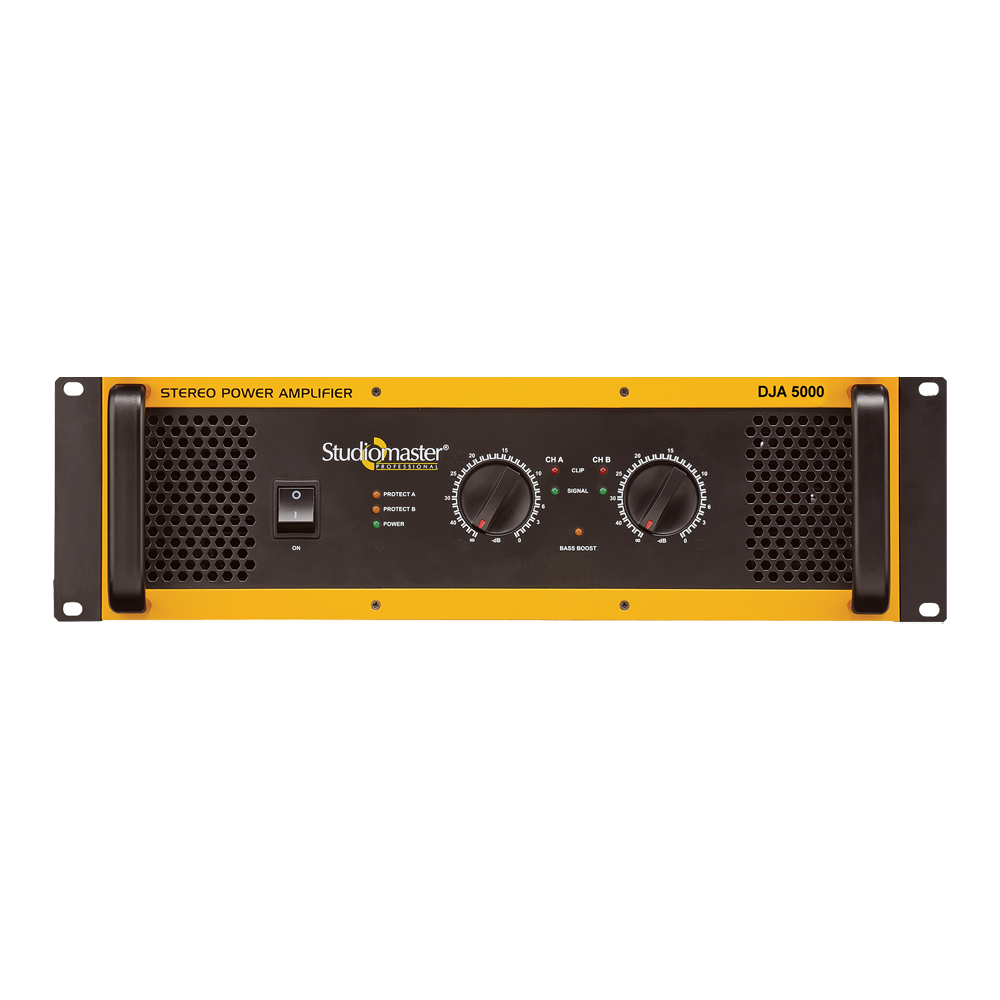

DJA 5000

Categories Amplifiers, Studiomaster

SPECIFICATIONS

Model	DJA 5000
Power Output
2 Ω (True RMS), 20Hz-20kHz, 1% THD	2 x 2800 W
2 Ω (EIA), 1kHz , 1%THD	2 x 3700 W
4 Ω (True RMS), 20Hz-20kHz, 1% THD	2 x 1900 W
4 Ω (EIA), 1kHz, 1%THD	2 x 2500 W
8 Ω (True RMS), 20Hz-20kHz, 1% THD	2 x 1200 W
8 Ω (EIA), 1kHz , 1%THD	2 x 1400 W
Bridged Mode
8 Ω (True RMS), 20Hz-20kHz, 1% THD	3800 W
8 Ω (EIA), 1kHz , 1%THD	5000 W
Damping factor	> 350 :1 (8 Ω)
Frequency Response	20Hz – 20kHz (-3dB)
Protection Devices	Temperature, DC, Short Circuit, Soft Start

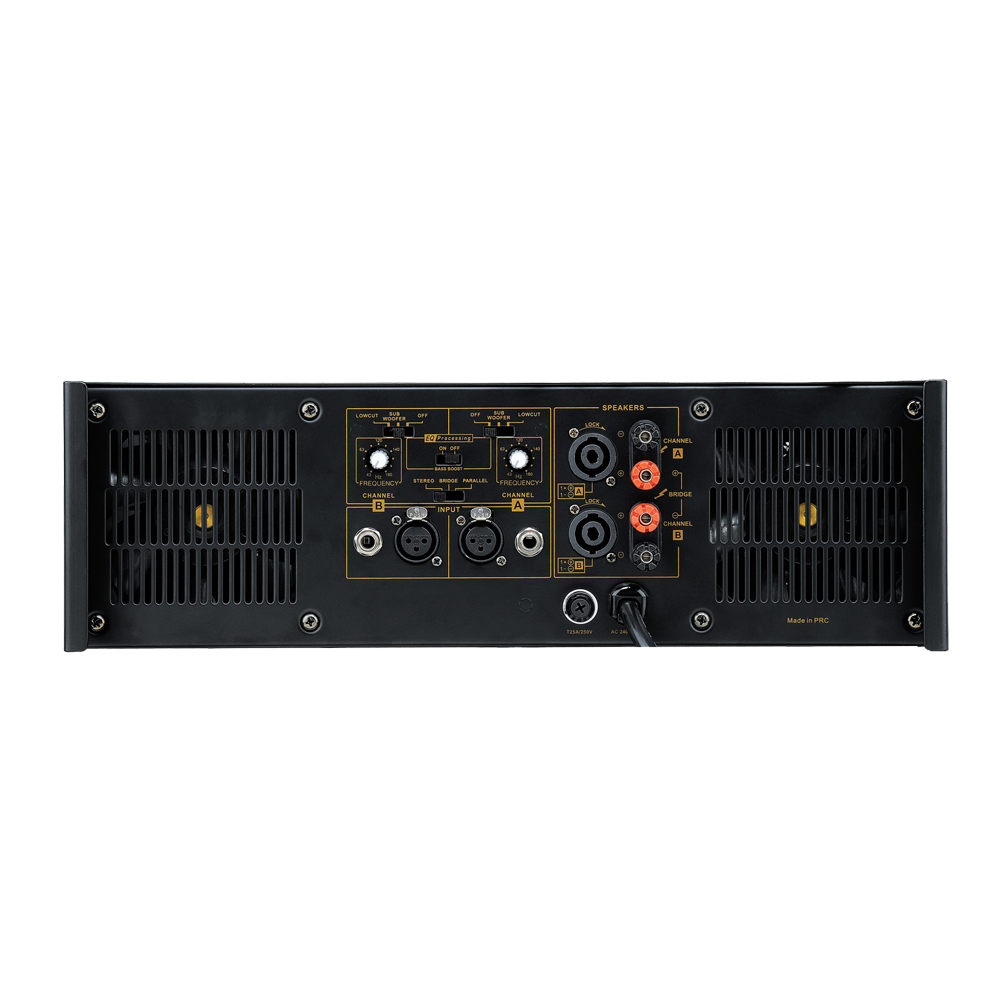

Input Connector (Per Channel)	XLR, 1/4” TRS Jack
Output Connector (Per Channel)	Speakon / Binding Posts
Dimensions (W x D x H)mm	482 x 530 x 132 (3U)
Net Weight (Kgs.)	32
