| Model |

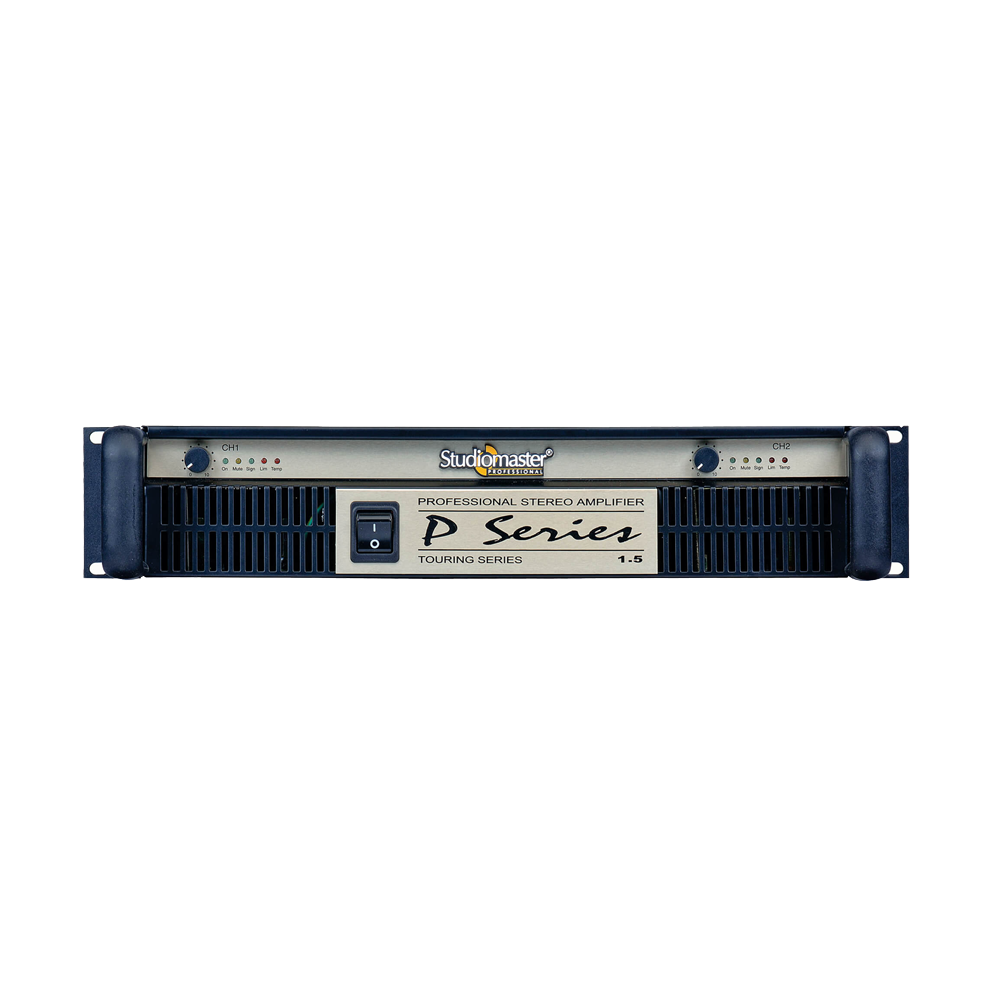

PA 1.5 |
| Power Output |
|
| 2 Ω (True RMS),20Hz-20kHz,1% THD |
2 x 800 W |
| 2 Ω (EIA), 1kHz , 1%THD |
2 x 1225 W |
| 4 Ω (True RMS),20Hz-20kHz,1% THD |
2 x 650 W |
| 4 Ω (EIA), 1kHz , 1%THD |
2 x 1012 W |
| 8 Ω (True RMS),20Hz-20kHz,1% THD |
2 x 350 W |
| 8 Ω (EIA), 1kHz , 1%THD |
2 x 595 W |
| Bridged Mode |
|
| 4 Ω (True RMS),20Hz-20kHz,1% THD |
1600 W |
| 4 Ω (EIA), 1kHz , 1%THD |
2450 W |
| 8 Ω (T rue RMS),20Hz-20kHz,1% THD |
1300 W |
| 8 Ω (EIA), 1kHz , 1%THD |
2025 W |
| Damping factor (8 Ω) |
> 200 :1 |
| Frequency Response |
20Hz – 20kHz (±0.5dB) |
| Protection Devices |
Temperature, DC, RFI Short Circuit, Soft-Start, Over load |

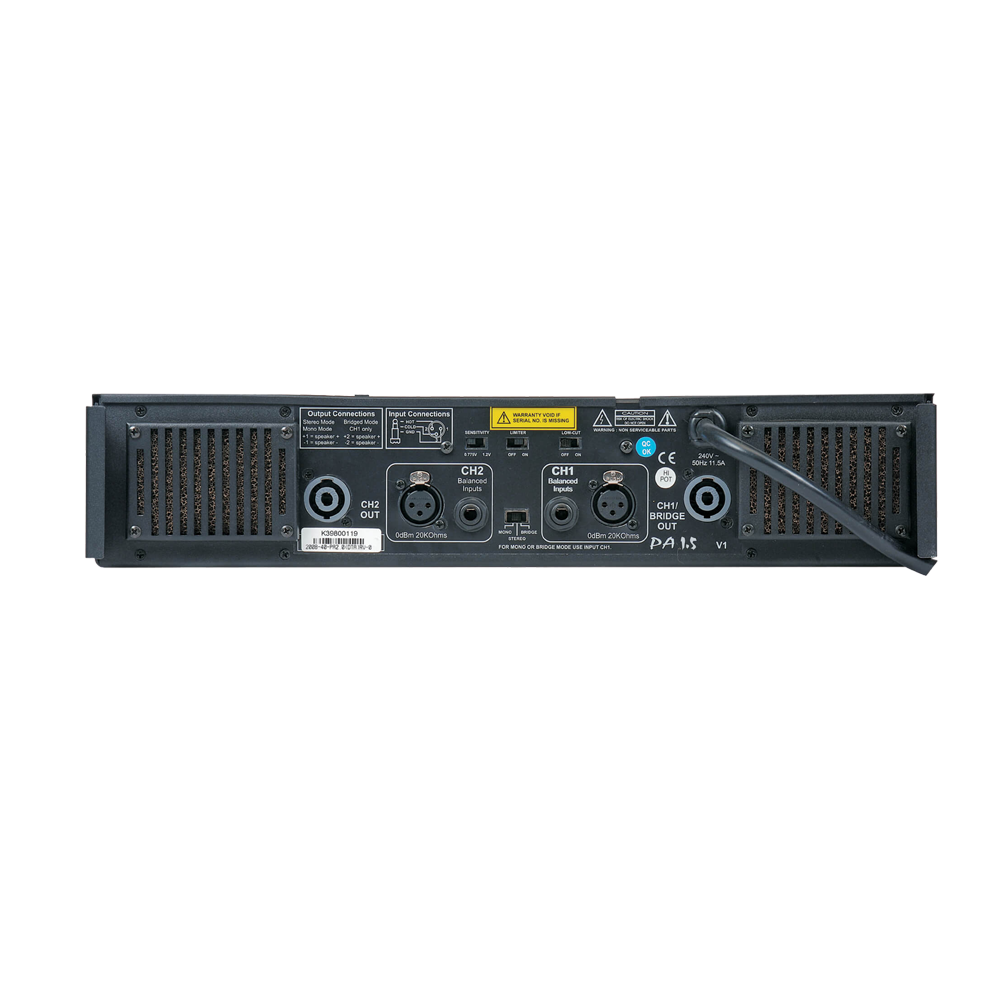

| Input Connector (Per CH.) |
XLR, 1/4” TRS Jack |
| Output Connector (Per CH.) |
Speakon Connector |
| Dimensions (WxDxH)mm |
482 x 455 x 88 (2U) |
| Net Weight (Kgs.) |
18 |
