| Model |

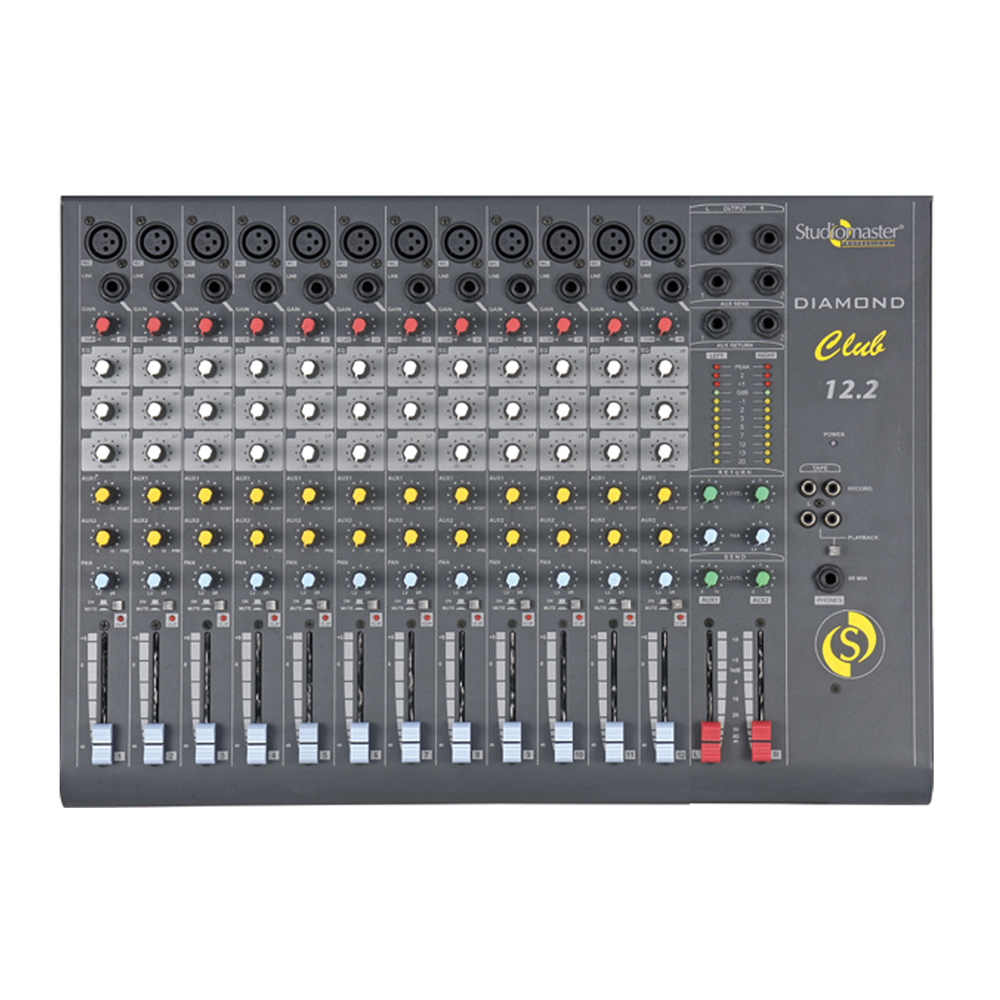

DC 12.2 |
| Nominal Gain (Mic/Line) |
60dB/40dB |
| Max Gain (Mic/Line) |
76dB/56dB |
| Input Levels Sensitivity |
| Mic (Gain Min/Gain Max) |
-12dBu / -60dBu |
| Line (Gain Min /Gain Max) |
+8dBu / -40dBu |
| Input impedence |
| Mic Input |
Typically 5K Ω balanced |
| Line input |
20K Ω (Balanced) /10K Ω (Unbalanced) |
| Main Output level (Nominal /Max) |
0dBu (0.775V RMS) / +17dBu (5.5V RMS) |
| Main Output Impedance |
<50 Ω |
| Frequency Response |
25Hz to 19KHz (+0/-1 dB) |
| Total Harmonic Distortion |
Better than 0.8% |
| Signal to Noise Ratio |
-76 dB |
| Clip indication |
4 dB prior to true clip |
| Equalisation (Treble/Mid/Bass) |
±16dB @ 10KHz/2.5KHz/100 Hz |
| EFX & USB |
– |
| Power supply |
150V~250V AC/50Hz |
| Dimensions (W x D x H in mm) |
515x376x89 |
| Net Weight (Kgs.) |
8 |
