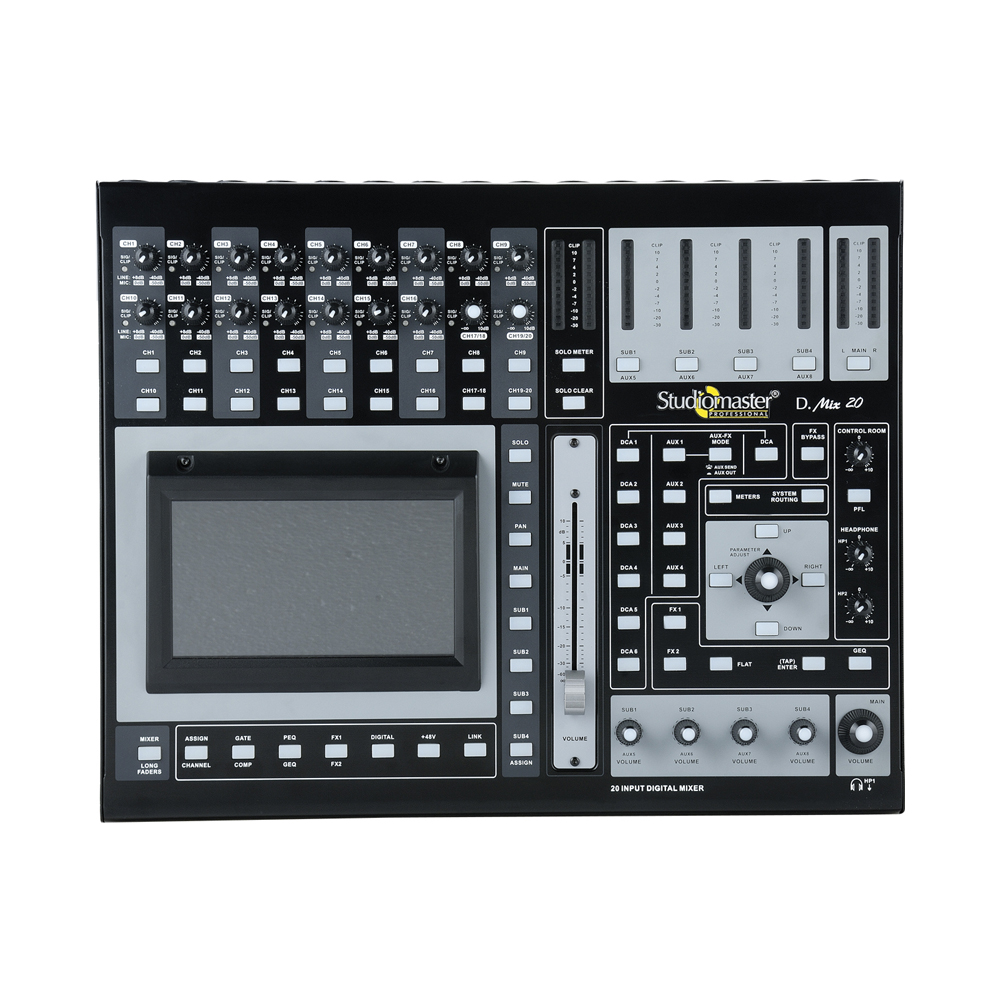

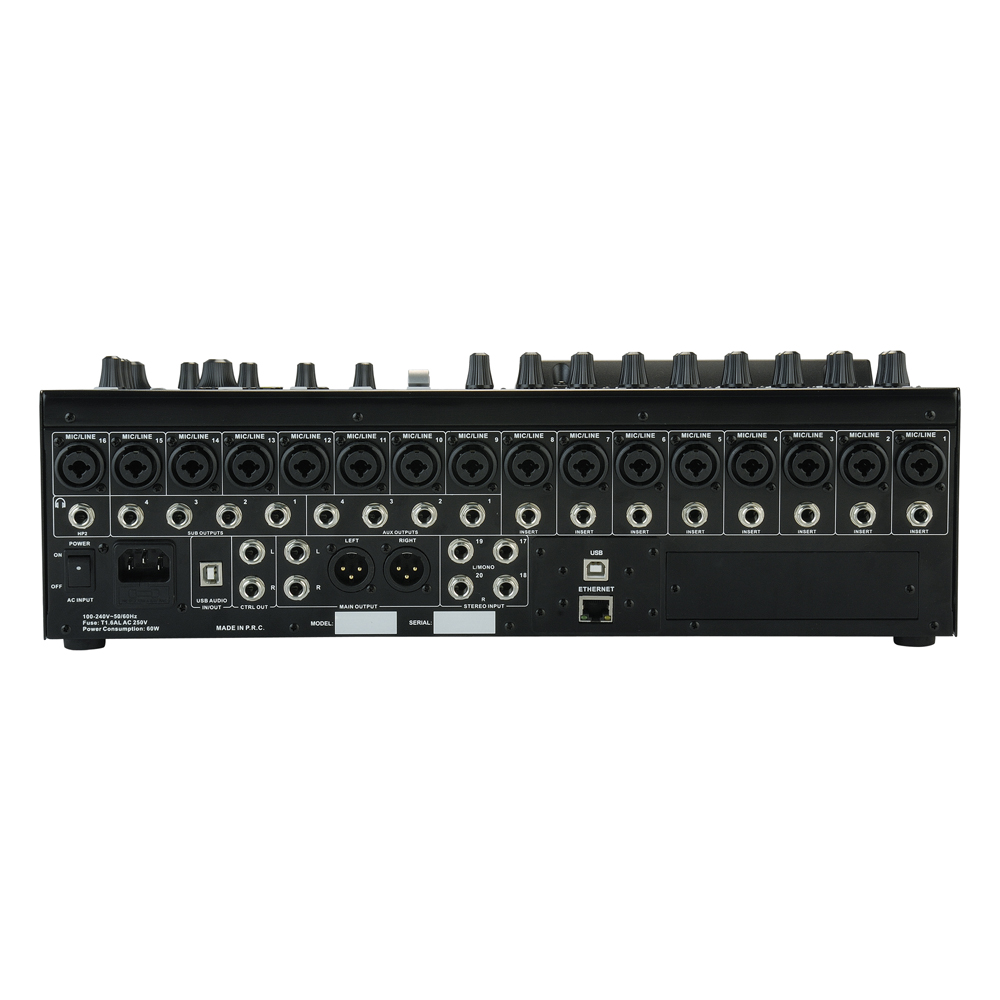

| Model | D. Mix 20 |
| Gain (Mic/Line/Stereo Line) | 50dB / 50 dB |
| Max Gain (Mic/Line) | 70dB / 70 dB |
| Input Levels Sensitivity | |
| Mic (Gain Min/Gain Max) | 0 dBu / -50 dBu |
| Line (Gain Min /Gain Max) | +8 dBu / -40 dBu |
| Input Impedance | |
| Mic Input | 5K Balanced |
| Line Input | 19K Unbalanced |
| Main Output level (Nominal / Max) | 0 dBu (0.775 V RMS) / +20 dBu (8V RMS) |
| Main Output Impedance | 120 Ω |
| Frequency Response | 20Hz to 20KHz (+0dB ± 1.5dB) |
| Total Harmonic Distortion | <0.05% |
| Signal to Noise Ratio | 85dB |
| Equalisation | |
| Mono Mic (Treble/Mid with Sweep/Bass) | ±24dB (21 Hz – 19.2 KHZ) |
| Stereo Line (Treble/Mid-Hi/Mid-low/Bass) | ±24dB (21 Hz – 19.2 KHZ) |
| EFX | 32 – Bit EFX Processor |
| Phantom supply | +48V |
| Dimensions (W x D x H)mm | 445 x 355 x 140 |
| Net Weight (Kgs.) | 7.25 |
