| Model |

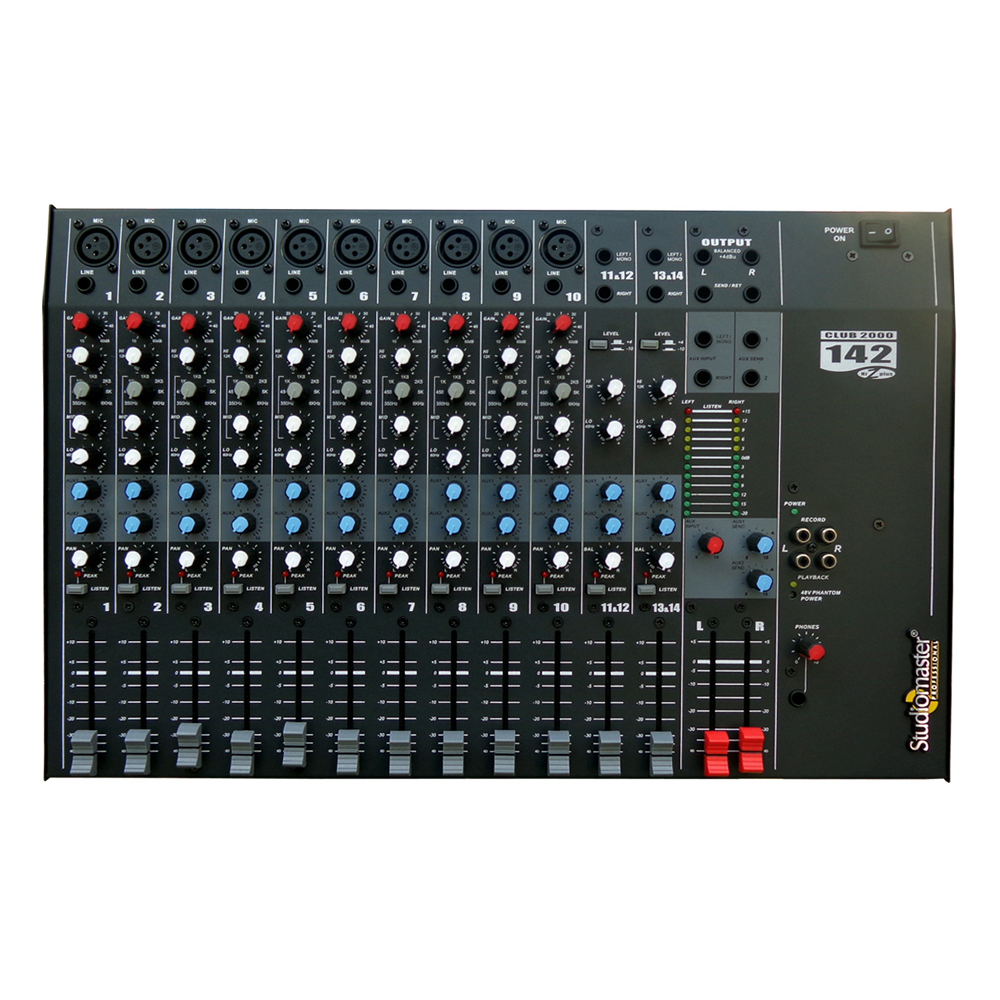

C 142 |
| Nominal Gain (Mic/Line/Stereo Line) |
60dB/40dB/12dB |
| Max Gain (Mic/Line/Stereo Line) |
75dB/55dB/27dB |
| Input Levels Sensitivity |
| Mic (Gain Min/Gain Max) |
-10dBu / -60dBu |
| Line (Gain Min /Gain Max) |
+10dBu / -40dBu |
| Stereo (Gain Min /Gain Max) |
0dBu/-12dBu |
| Input impedence |
| Mic Input |
Typically 2K Ω balanced |
| Line input |
20K Ω (Balanced) /10K Ω (Unbalanced) |
| Stereo Line |
15K Ω (Balanced) /10K Ω (Unbalanced) |
| Main Output level (Nominal /Max) |
0dBu (0.775V RMS) / +22dBu (10V RMS) |
| Main Output Impedance |
<75 Ω |
| Frequency Response |
20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion |
<0.004% |
| Signal to Noise Ratio |
-75 dB |
| Clip indication |
5 dB prior to true clip |
| Equalisation |
| Mono Mic [Treble/Mid(with sweep)/Bass] |
±15dB @ 12KHz/350Hz-6KHz/60 Hz |
| Stereo Mic/Line (Treble/Bass) |
±15dB @ 12KHz/45 Hz |
| EFX & USB |
– |
| Phantom Supply |
+48V |
| Power supply |
150V~250V AC/50Hz |
| Dimensions (W x D x H in mm) |
492 x 322 x 87 |
| Net Weight (Kgs.) |
5.5 |
