| Model |

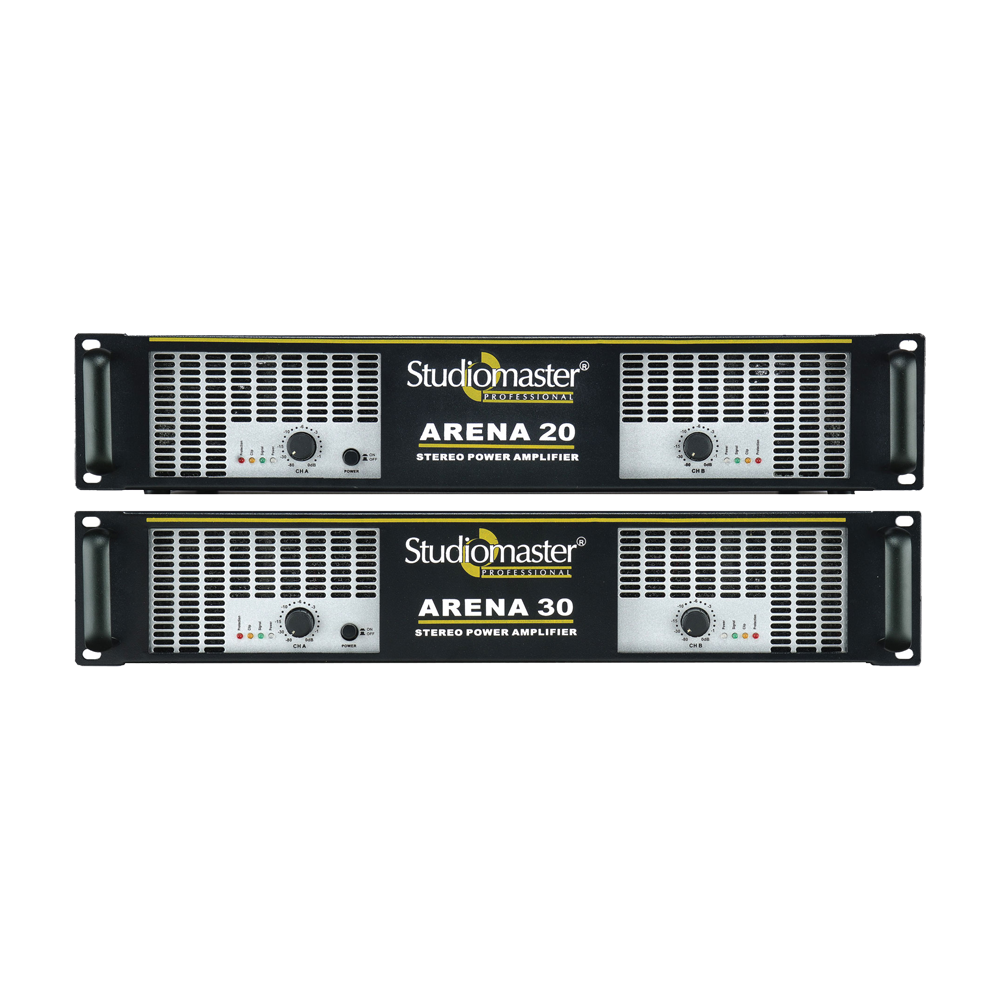

ARENA 20 |
| Power Output |
| 2 Ω (True RMS), 20Hz-20kHz, 1% THD |
2 x 1000 W |
| 2 Ω (EIA), 1kHz , 1%THD |
2 x 1800 W |
| 4 Ω (True RMS), 20Hz-20kHz, 1% THD |
2 x 800 W |
| 4 Ω (EIA), 1kHz , 1%THD |
2 x 1250 W |
| 8 Ω (True RMS), 20Hz-20kHz, 1% THD |
2 x 500 W |
| 8 Ω (EIA), 1kHz , 1%THD |
2 x 755 W |
| Bridged Mode |
| 4 Ω (True RMS), 20Hz-20kHz, 1% THD |
2000 W |
| 4 Ω (EIA), 1kHz , 1%THD |
3600 W |
| 8 Ω (T rue RMS), 20Hz-20kHz, 1% THD |
1600 W |
| 8 Ω (EIA), 1kHz , 1%THD |
2500 W |
| Damping factor (8 Ω) |
> 200 :1 |
| Frequency Response |
20Hz – 20kHz (-3dB) |
| Protection Devices |
Temperature, DC, Short Circuit, Soft-Start, Thermal Power Transformer |
| Input Connector (Per Channel) |
XLR |
| Output Connector (Per Channel) |
Speakon Connector |
| Dimensions (W x D x H)mm |
482 x 432 x 88 (2U) |
| Net Weight (Kgs.) |
21 |
