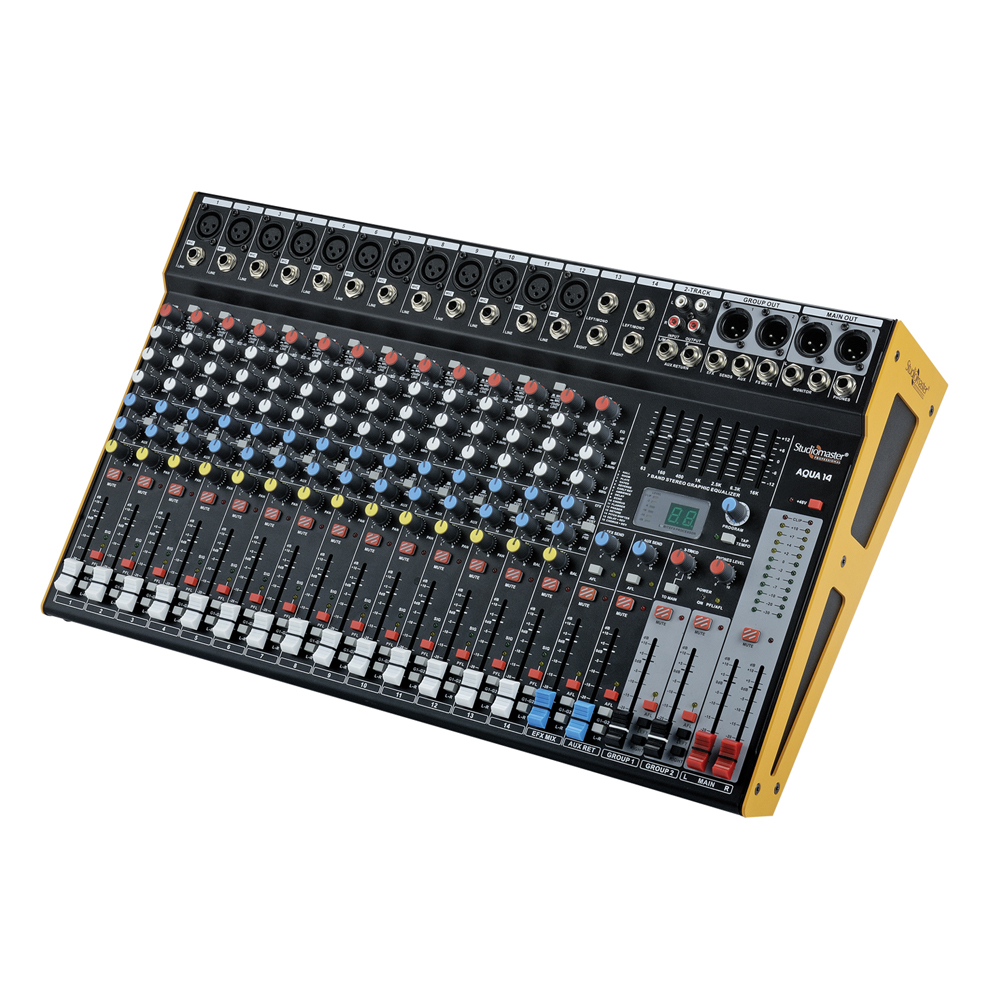

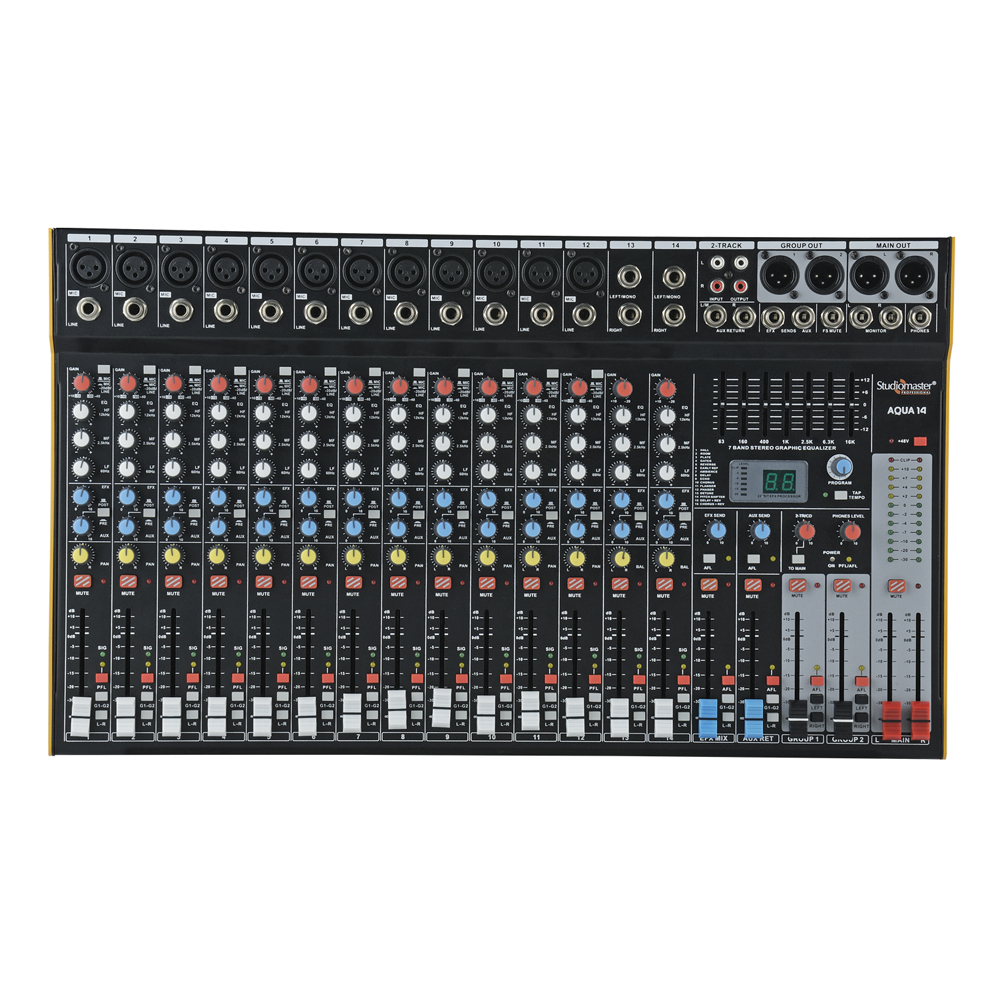

| Model | AQUA 14 |
| Nominal Gain (Mic/Line/Stereo Line) | 0dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB/60dB/40dB |
| Input Levels Sensitivity | |
| Mic (Gain Min/Gain Max) | -10dBu/ -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Input Impedance | 2KΩ Balanced |
| Main Output level (Nominal / Max) | 0dBu (0.775V RMS) / +22dBu (10V RMS) |
| Main Output Impedance | 75Ω |
| Frequency Response | 20Hz to 20KHz (+0/-2 dB) |
| Total Harmonic Distortion | < 0.006% |
| MSignal to Noise Ratio | 85dB |
| Equalisation (Mic / Stereo Line) | -±15dB (12KHz HF / 2.5 KHz MF/60Hz LF) / ±15dB (12KHz HF / 2.5 KHz MF/80Hz LF) |
| Effect | 16 Effects, 24-Bit EFX Processor |
| Phantom supply | +48V |
| Dimensions (W x D x H )mm | 538 x 317 x 134 |
| Net Weight (Kgs.) | 6.5 |
