| Model |

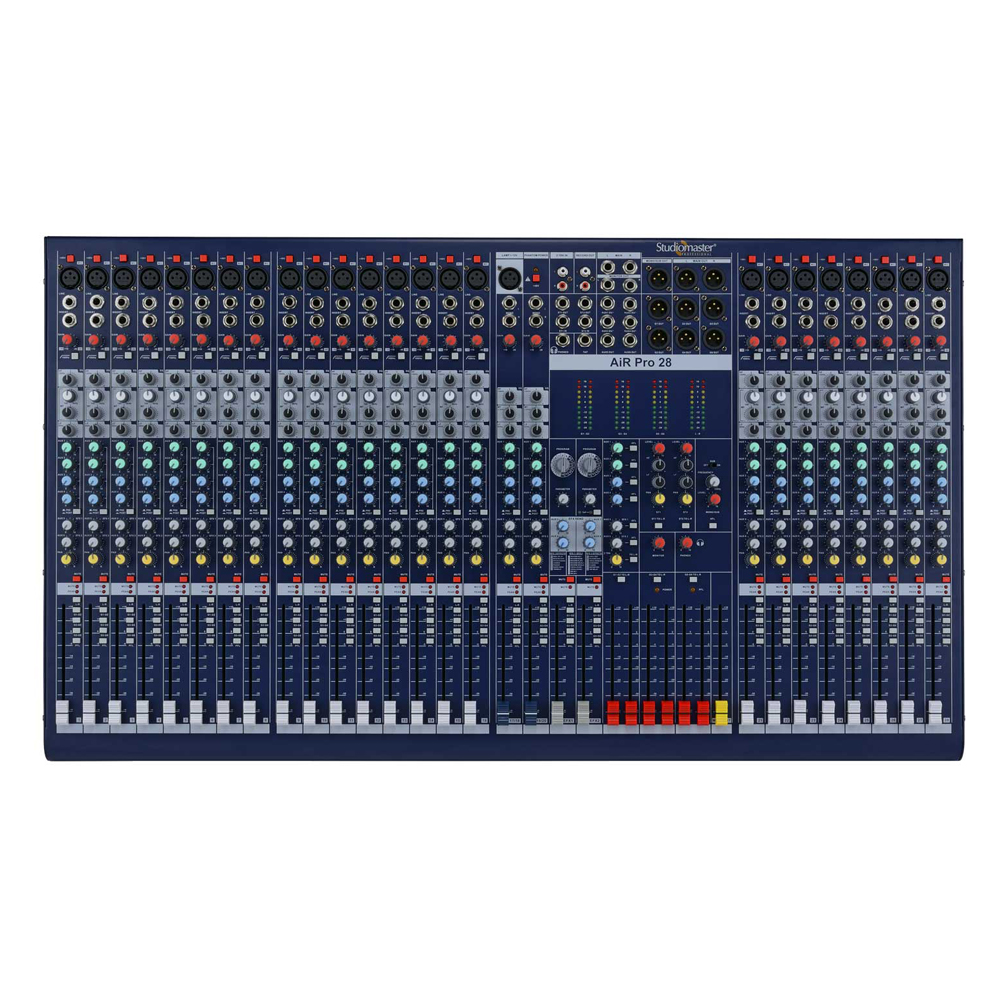

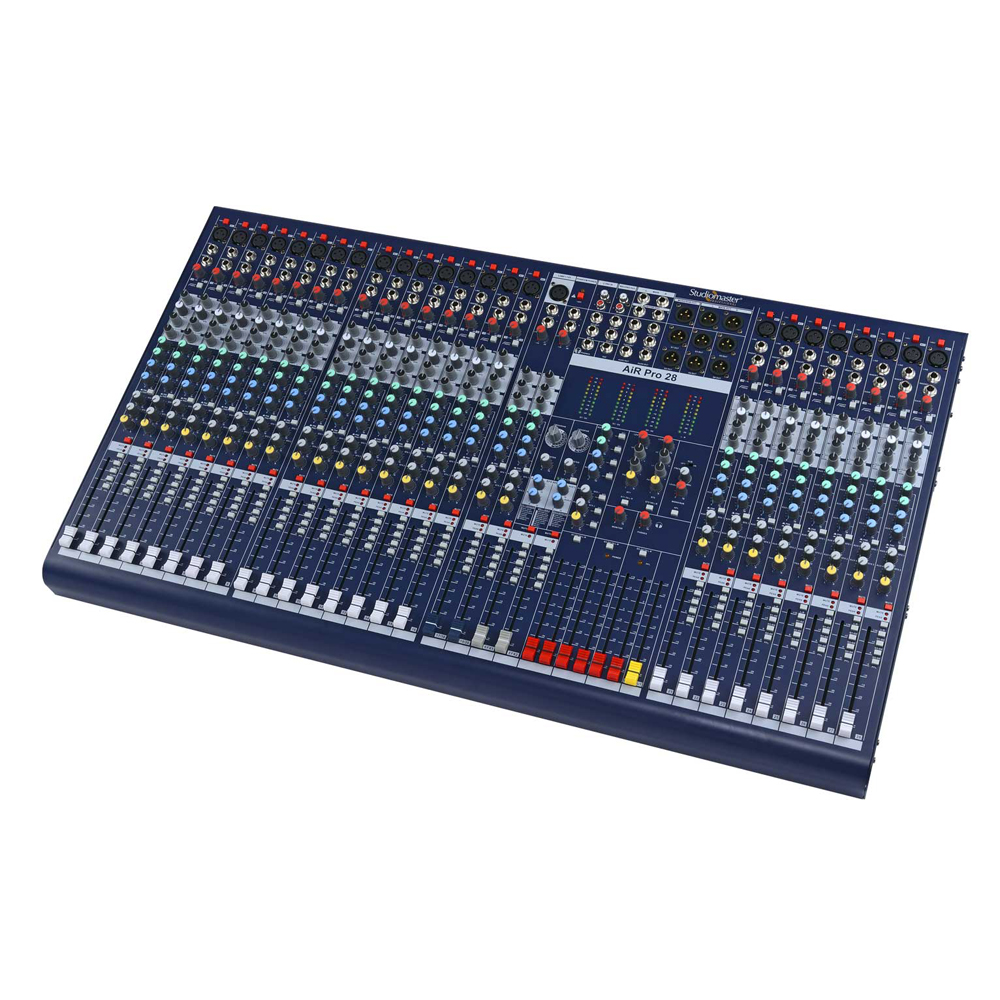

Air Pro 28 |
| Nominal Gain (Mic/Line/Stereo Line) |
60dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) |
80dB/60dB/40dB |
| Input Output Levels |
| Input Sensitivity |
| Mic (Gain Min/Gain Max) |
-10dBu/-60dBu |
| Line (Gain Min/Gain Max) |
+10dBu/-40dBu |
| Stereo Line (Gain Min/Gain Max) |
+10dBu/-20dBu |
| Input Impedance |
| Mic Input |
1.5 KΩ Balanced |
| Line Input |
20KΩ Balanced/10KΩ UnBalanced |
| Main Output & Group Output (Nominal/Max) |
0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Frequency Response |
20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion |
< 0.02% |
| Signal to Noise Ratio |
-80dB |
| Clip Indication |
5dB prior to true clip |
| Equalization |
| Mono MIC (Treble/Mid(with swip)/Bass) |
±16dB @ 12KHz/140Hz-3KHz/80Hz |
| Stereo Line (Treble/Bass) |
±16dB @ 12KHz/80Hz |
| Effect & USB |
2 x 16EFX (EFX1 & EFX2) |
| Phantom supply |
+48V ((Individual Switch on each Channel) |
| Power Supply |
150V-240V / 50Hz |
| Power Consumption |
50W Max |
| Dimensions (W x D x H in mm) |
900 x 520 x 130mm |
| Net Weight (Kgs.) |
16.5 Kg |
| Gross Weight (Kgs.) |
19.6 Kg |
