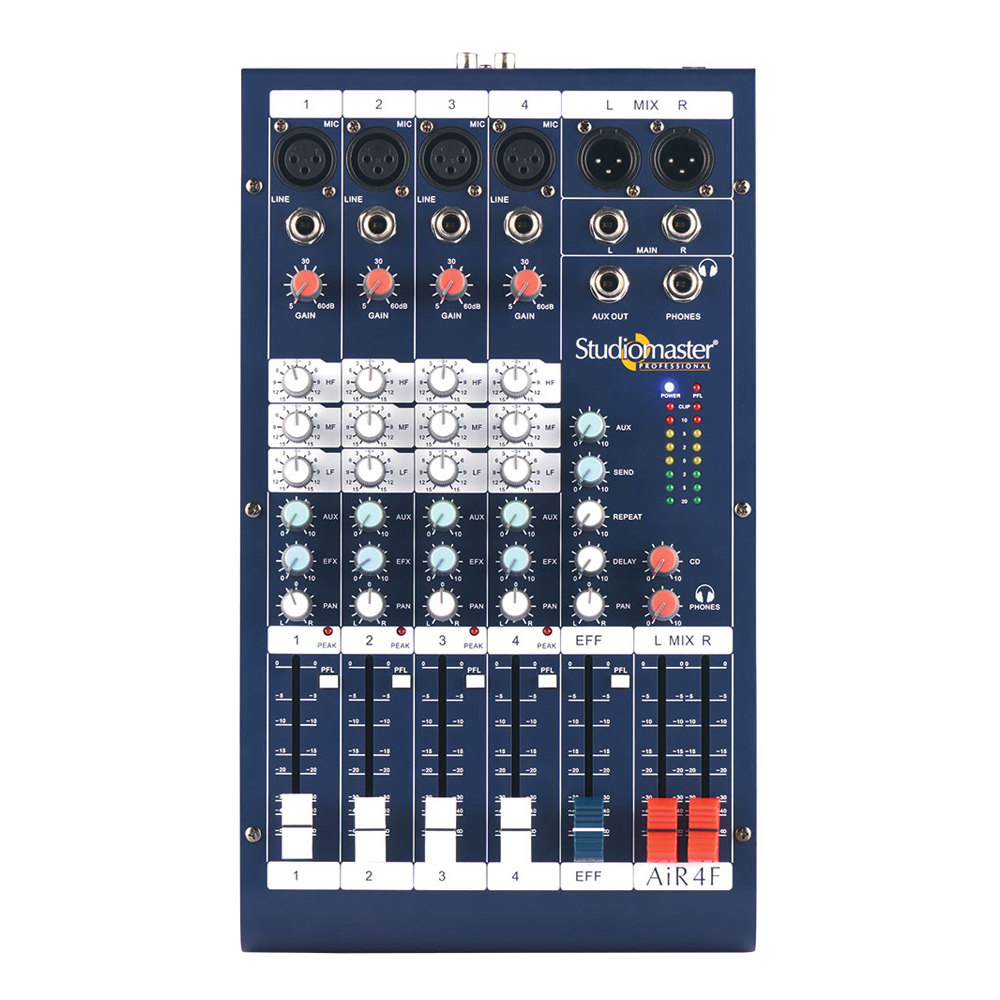

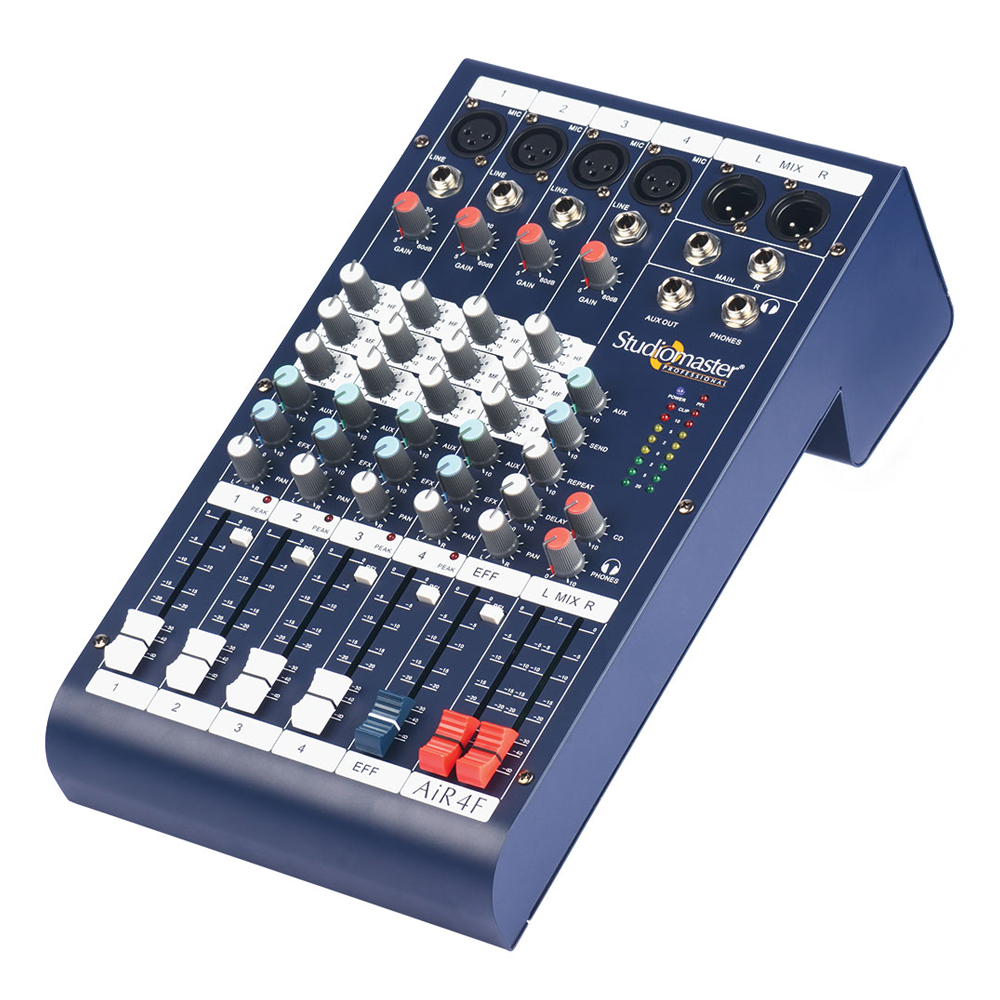

AiR 4F

Categories ,

AiR 4F

SPECIFICATIONS

Input Sensitivity -60dBm to -40dBm
Nominal Input Level MIC (-60dBm)

Line (-40dBm)

Effect (-10dB)

AUX In (-20dB)

Tape In (-10dB)

Nominal Output Level Effect Send (-10dBm)
AUX Send (0dBm)
Frequency Response 20Hz-20kHz (± 3dB)
Total Harmonic Distortion <0.03%
Signal to Noise Ratio >85dB
Clip Indication 4dB prior to true clip
Equalisation (Treble/Mid/Bass) ±15dB @ 12kHz / 2.5kHz / 80Hz
EFX Delay with repeat
Power Supply AC 240V / 50Hz
Dimensions (W x D x H) mm 330 x 190 x 105
Net Weight (Kg) 3
