Description

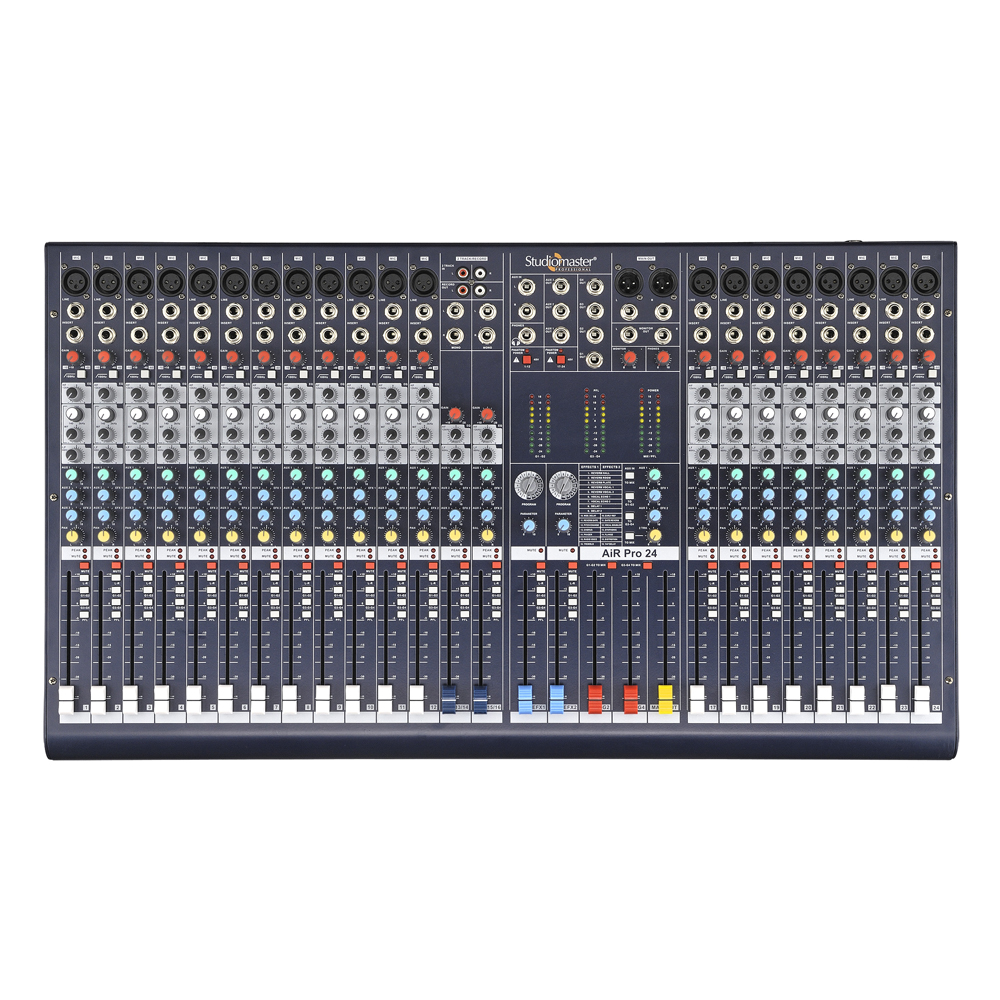

| Model | AiR 24 |
| Nominal Gain (Mic/Line/Stereo Line) | 60dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB/60dB/40dB |
| Input Levels Sensitivity | |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min /Gain Max) | +10dBu / -20dBu |
| Input Impedence | |
| Mic Input | 1.5 KΩ Balanced |
| Line input | 20KΩ (Balanced) /10KΩ (Unbalanced) |
| Main Output & Group Output (Nominal / Max) | +0dBu (0.775V RMS) / +20dBu (7.75V RMS) |
| Frequency Response | 20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion | < 0.02% |
| Signal to Noise Ratio | -80dB |
| Clip indication | 5dB prior to true clip |
| Equalisation | |
| Mono Mic [Treble/Mid(with sweep)/Bass] | ±16dB @ 12KHz/140Hz-3KHz/80 Hz |
| Stereo Mic/Line (Treble/Bass) | ±16dB @ 12KHz/80Hz |
| EFX & USB | 2 x 16EFX (EFX1 & EFX2) |
| Phantom supply | +48V (Separate Selection for 1-12 &
17-24 Channels) |
| Power supply | 150V 250V AC/50Hz (External Power supply) |
| Dimensions (W x D x H)mm | 680 x 520 x 130 |
| Net Weight (Kgs.) | 12.5 |
